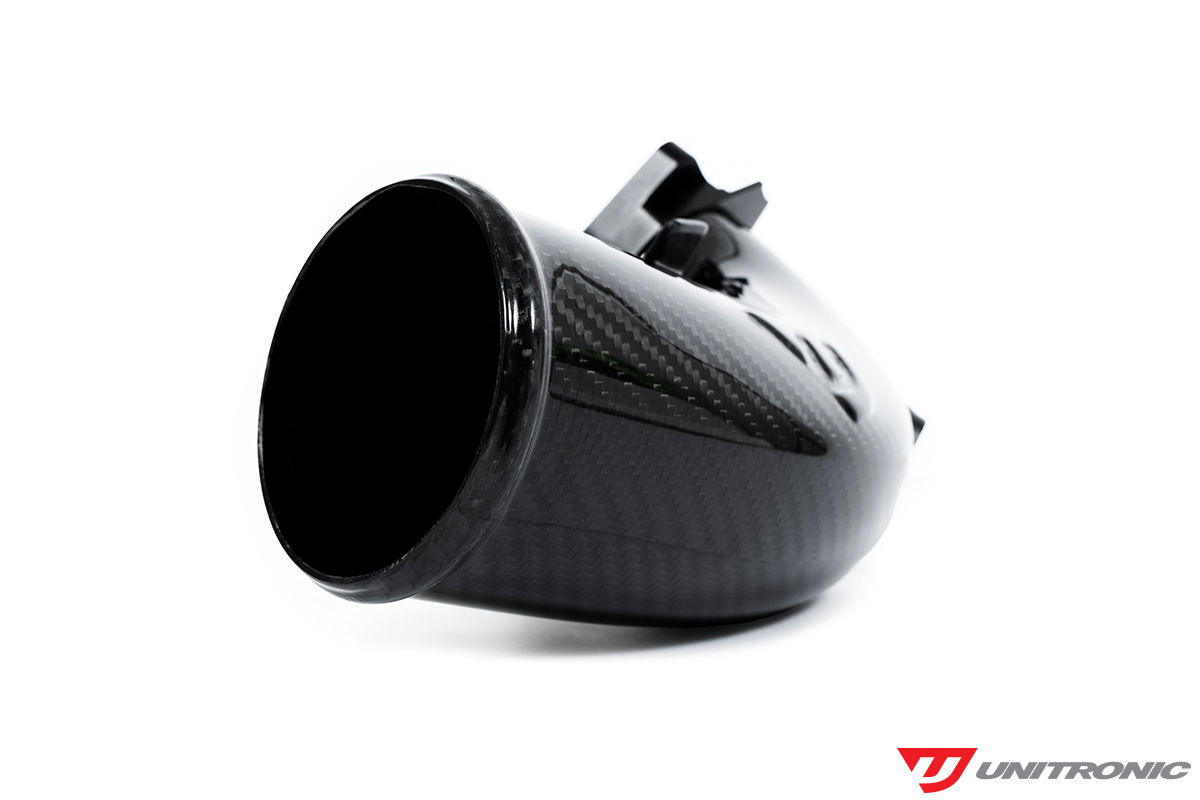

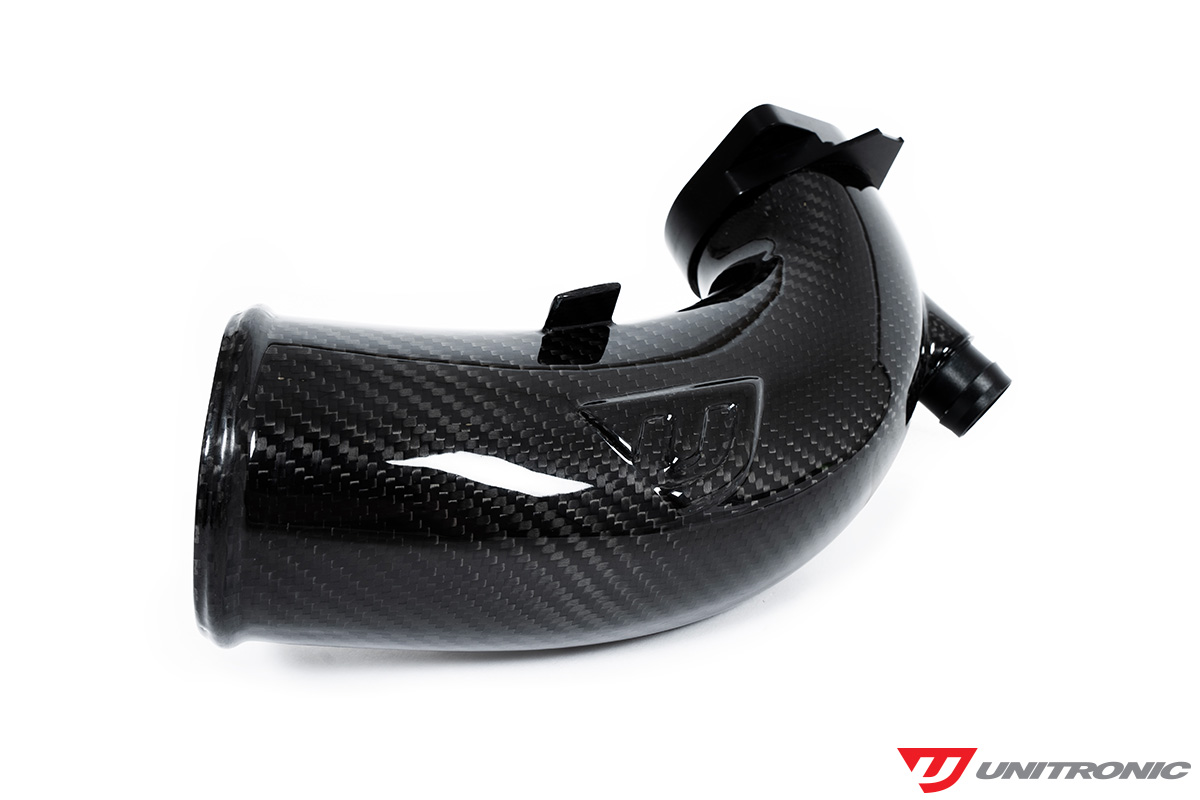

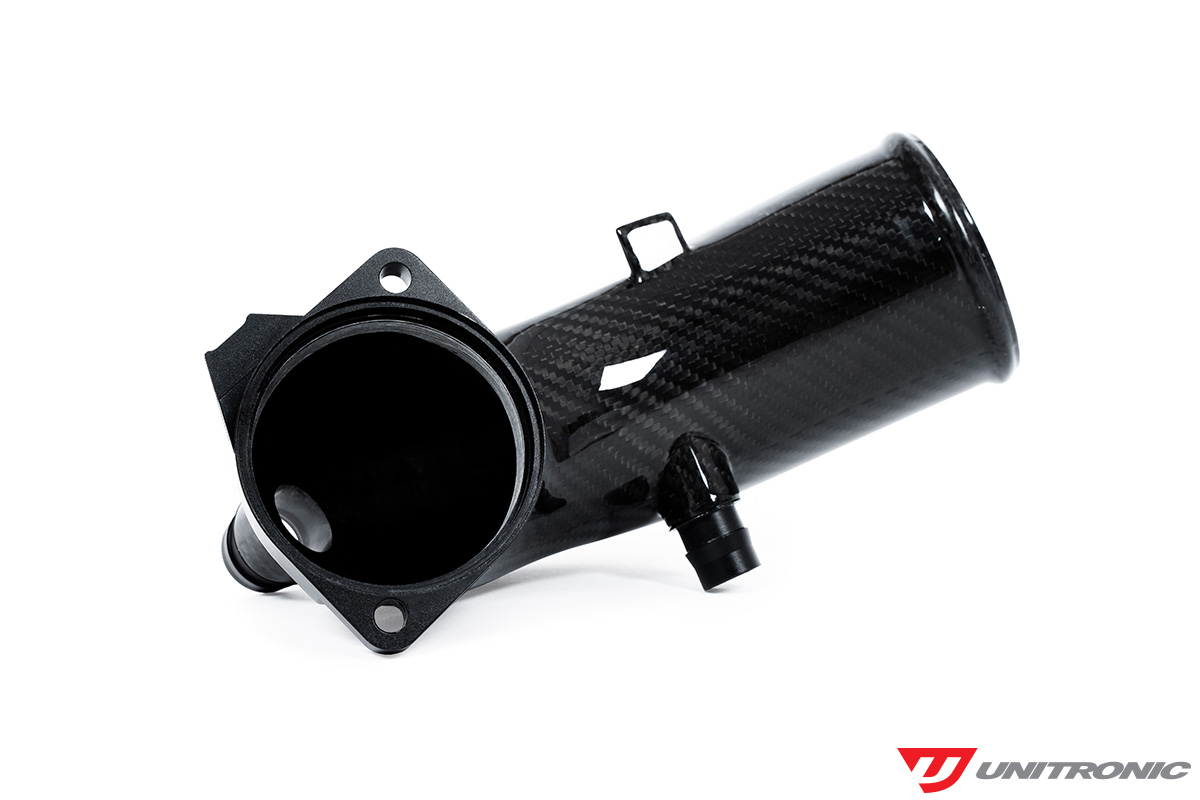

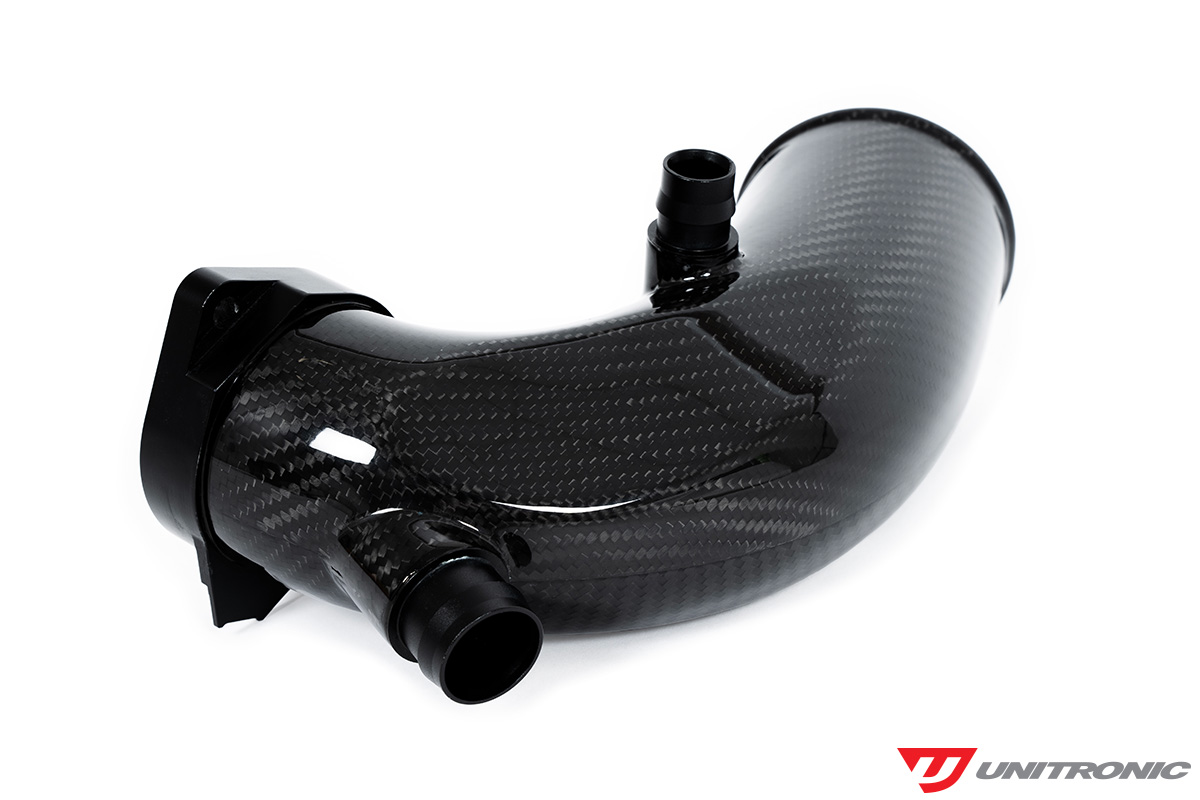

Unitronic Carbon Fiber Inlet for B9 S4 / S5 3.0TFSI(UH044-INA)Select Vehicle

This Carbon Fiber Turbo Inlet for the B9 and B9.5 Audi S4 and S5 is designed to dramatically improve airflow with massive gains over stock while supporting both the stock turbocharger and hybrid turbochargers via Unitronic's clever 53mm and 65.7mm adapter rings.

Constructed of high quality carbon fiber, this new B9 S4 Turbo Inlet and B9 S5 Turbo Inlet features a large 85mm bore and smooth transitions to draw massive amounts of non-turbulent air from the airbox. A factory style PCV connection is maintained for OEM-level fitment as well.

Learn more in our official release article here.
Features / Benefits
  • 2/2 Twill prepreg carbon fiber weave
  • Autoclave construction
  • Up to 57% more airflow than stock

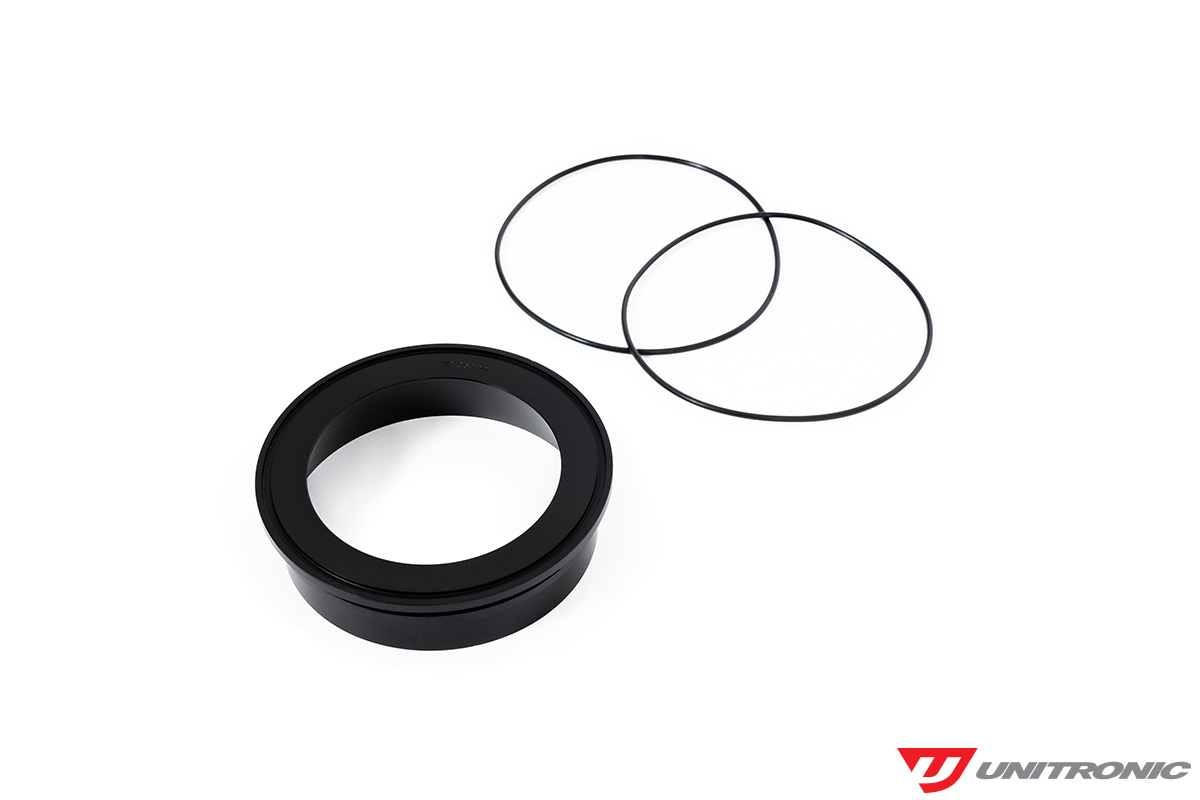

  • Modular adapter rings (53mm or 65.7mm) for the stock turbocharger or TheTurboEngineers TTE710 / TTE810 hybrid turbochargers
  • High-quality stainless steel hose clamps
  • Direct bolt-on fitment with OEM Mounting Locations
  • Smooth airflow transitions
  • Proven airflow gains

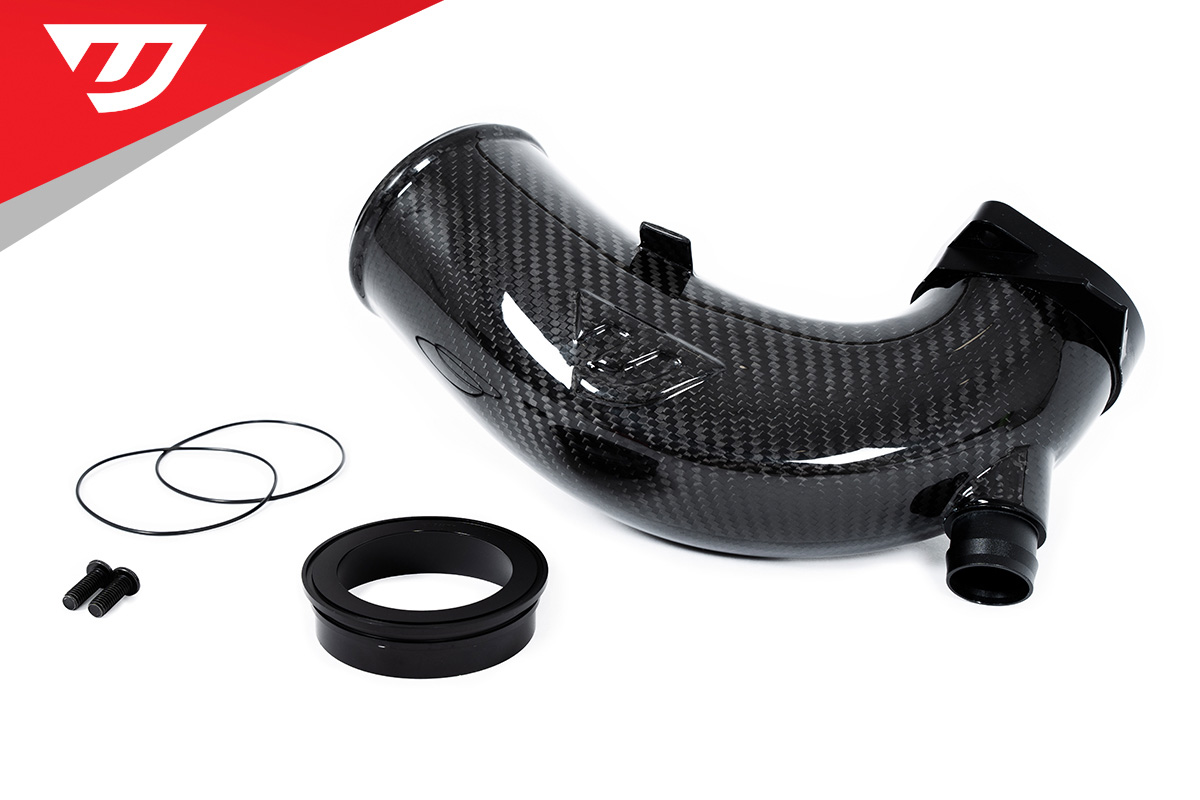

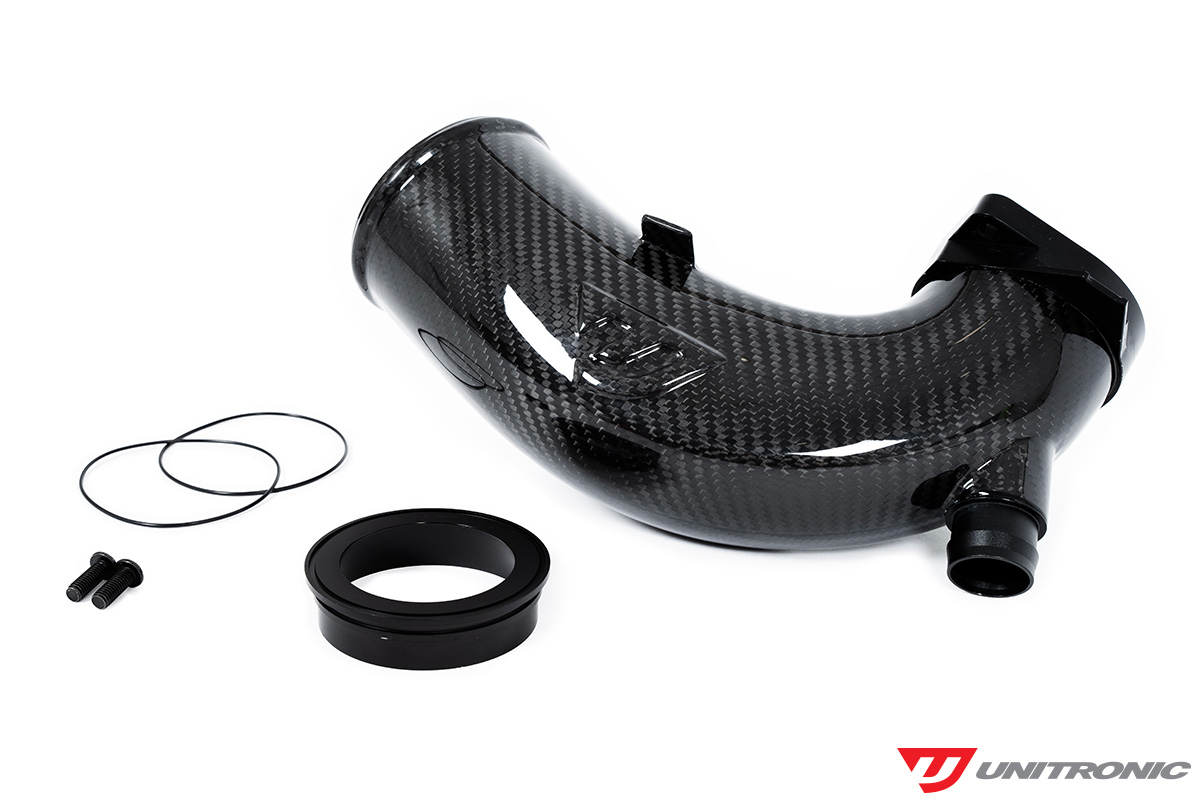

Hardware Included
  • Carbon Fiber Turbo Inlet
  • All Necessary Hardware
  • Inlet Adapter Ring
Recommended Software
  • Stage 1
  • Stage 1+
  • Stage 2
Locate Dealer
Required Options
You must select one of the following option
Proven Airflow Gains
Unitronic Hardware Engineers carefully benchmarked the OEM Audi S4 & S5 turbo inlet versus the Unitronic Turbo Inlet in a controlled environment using our in-house Superflow SF-1020 flow bench. Our team observed massive air flow gains with the Unitronic Turbo Inlet. This drastic air flow improvement allows the turbocharger to work more efficiently and achieve target boost with less stress resulting in improved reliability.
Designed and Tested In-House
At Unitronic, hardware evolution begins with rapid prototyping utilizing our in-house Stratasys 3D printer. Within hours, Unitronic Engineers are able to have a complete working printed prototype, allowing for test fitments to be performed on the vehicle, functional testing to be completed and flow data collected to further validate the designs.
The Unitronic Carbon Fiber Turbo Inlet for 3.0TFSI EA839 equipped vehicles installs simply with all necessary hardware included. Total installation time can take approximately one to two hours including the removal of the factory turbo inlet.

Difficulty Level:
2 / 5
Installation Guide
