Unitronic Intercooler Upgrade for 2.5TFSI EVO - Now Available

Nov 23rd, 2020 Products

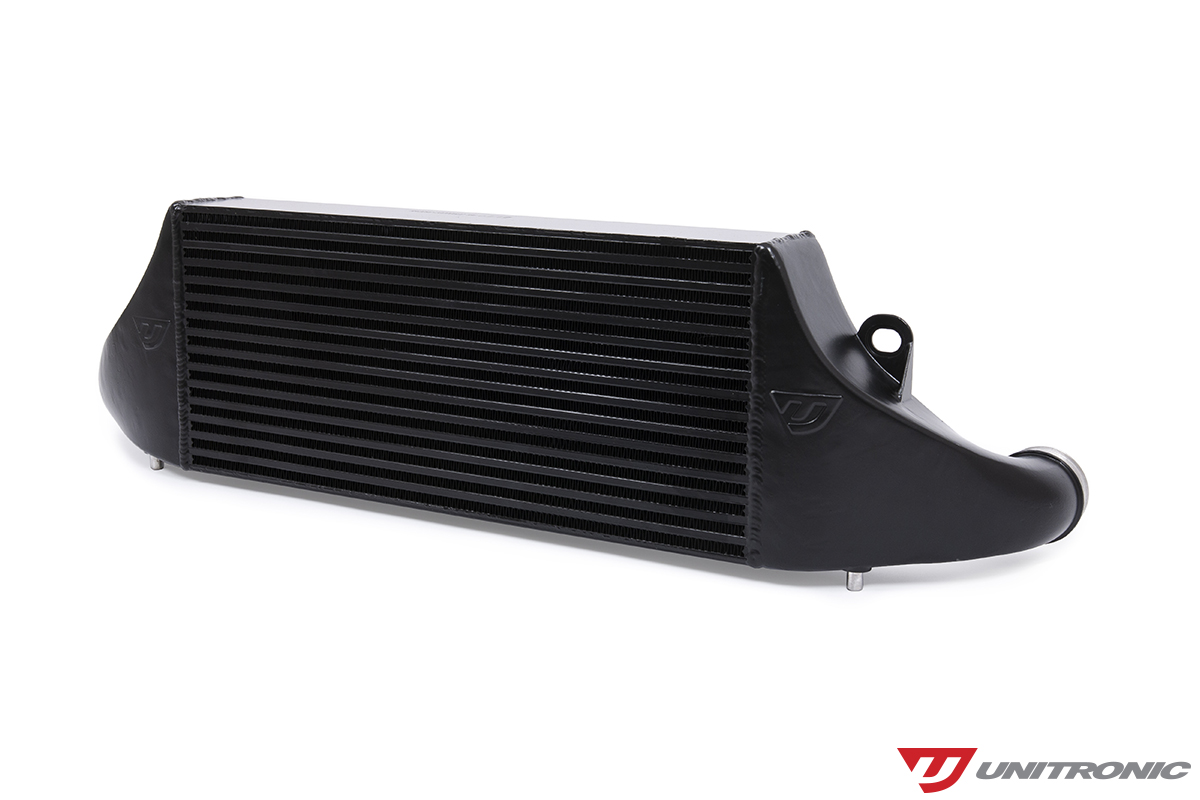

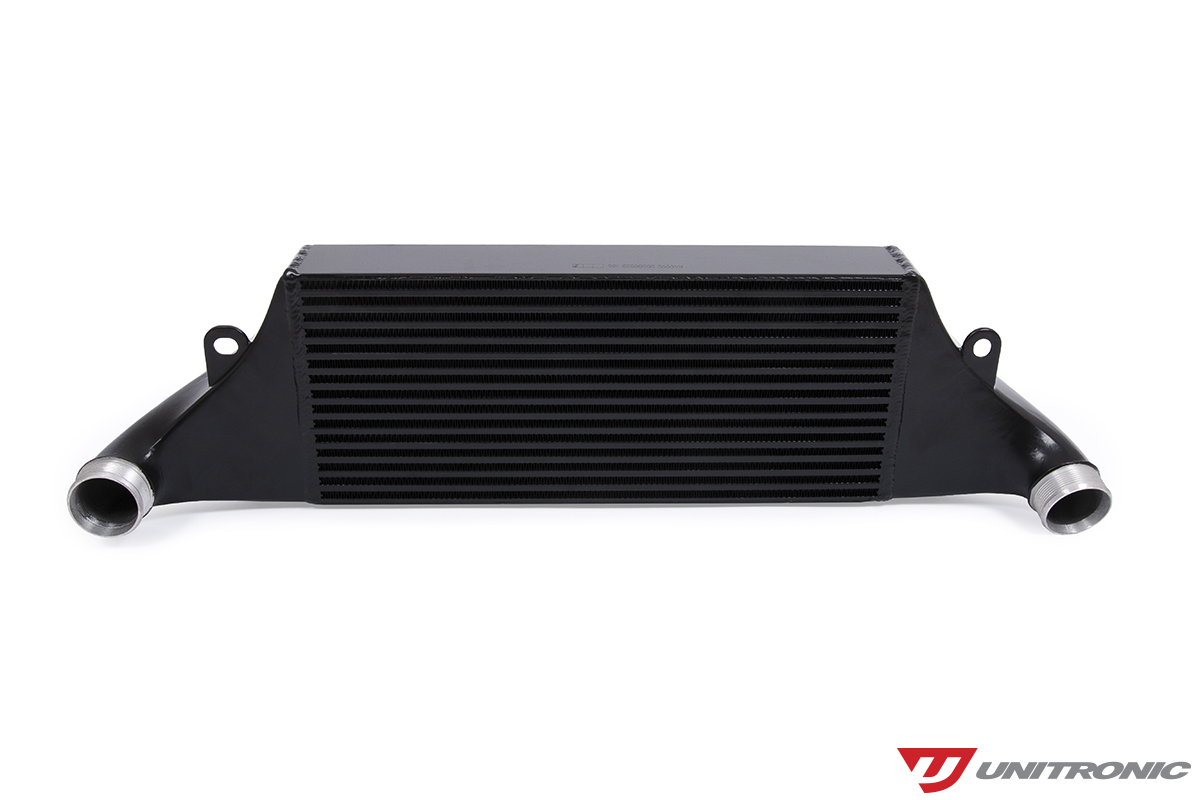

Unitronic® is proud to release its Intercooler Upgrade for the 2.5TFSI EA855 EVO engines, found in the 8V.2 Audi RS 3® and 8S Audi TT RS®. This direct OEM replacement bar and plate intercooler is available with a black or raw finish and provides a dramatic reduction in charge air temperatures to ensure peak performance is achieved and sustained while resisting heat-soak after repeated efforts and in harsh climates and conditions.

Unitronic-2.5tfsi-evo-intercooler


Consistent with all of its performance products, Unitronic utilizes only the latest industry leading tools, equipment and computer aided design software that are packed with the latest technology from our technology partners at Creaform® and Stratasys®. These tools and technology help to achieve a design that not only optimizes thermal efficiency, but airflow to maintain the least amount of pressure drop, while fitting within the space constraints without affecting the frontal crash bar assembly or other components behind the front bumper.


Unitronic-2.5tfsi-evo-intercooler

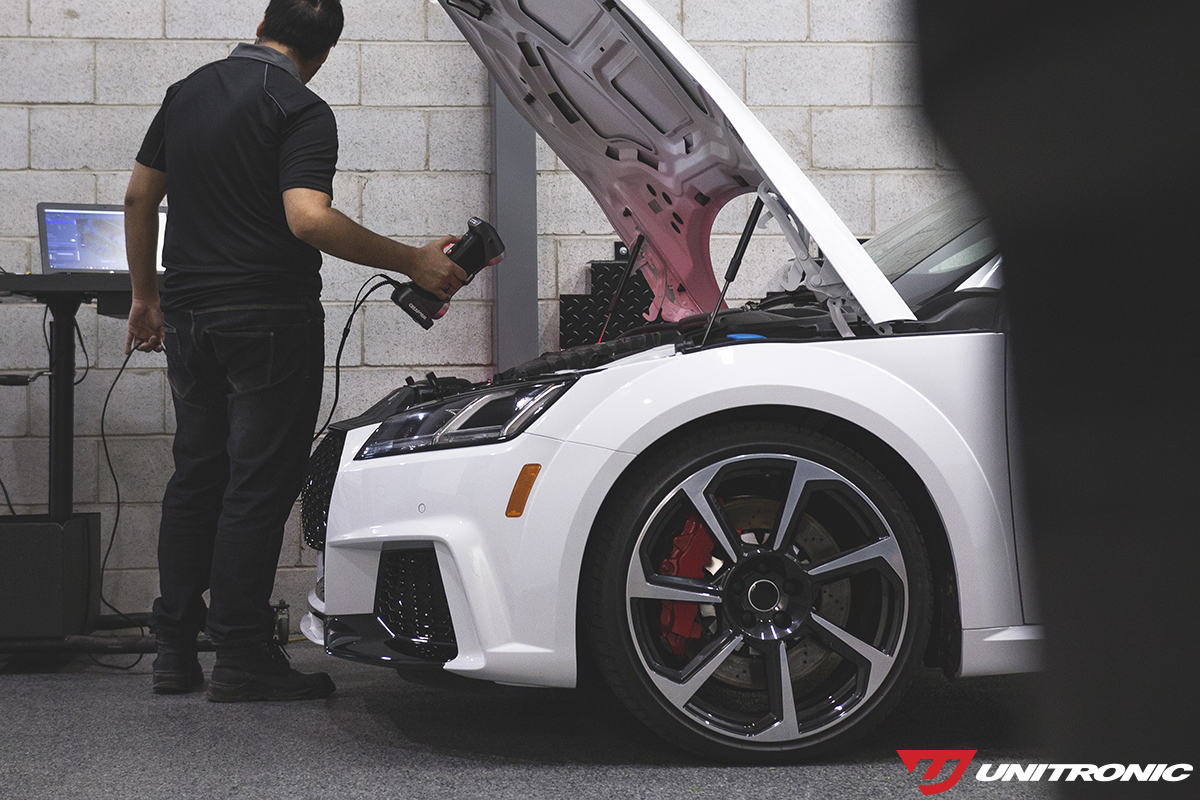

At Unitronic, development begins with setting the objectives; performance, efficiency, aesthetics and quality. Operations start with 3D scanning the 2.5TFSI EVO engine bay and OEM components with it’s in-house 3D scanner. Once 3D scan data has been collected and processed, Unitronic Hardware Engineers then interact with the 3D models to identify fitment constraints, mounting locations, other component locations, etc. to ensure the final product fits perfectly within the “envelope”.


Unitronic-2.5tfsi-evo-intercooler


Engineering begins with the evolution of the design in meeting the objectives. Criteria from a top level is first met with the platform's structural constraints; developing it from the details in optimizing the design. With upfront engineering fluid dynamics (EFD), Unitronic is able to hone in and refine the areas that are most effective in meeting those objectives.

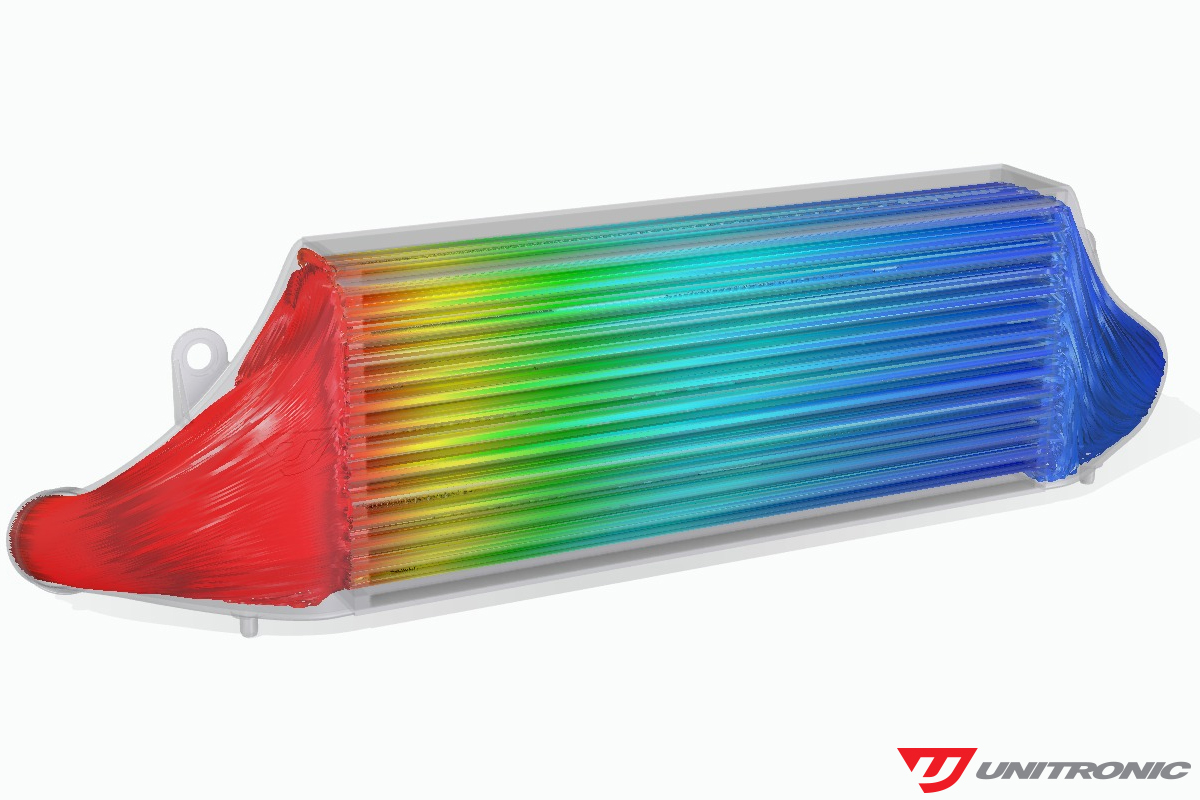

With the ability to perform different iterations from design changes we are also able to accurately predict how well it will perform. Below is a predictive simulation plot operating within the same conditions it was tested in. Results illustrate and validate the actual data collected.


Unitronic-2.5tfsi-evo-intercooler-efdUnitronic-2.5tfsi-evo-intercooler-efd

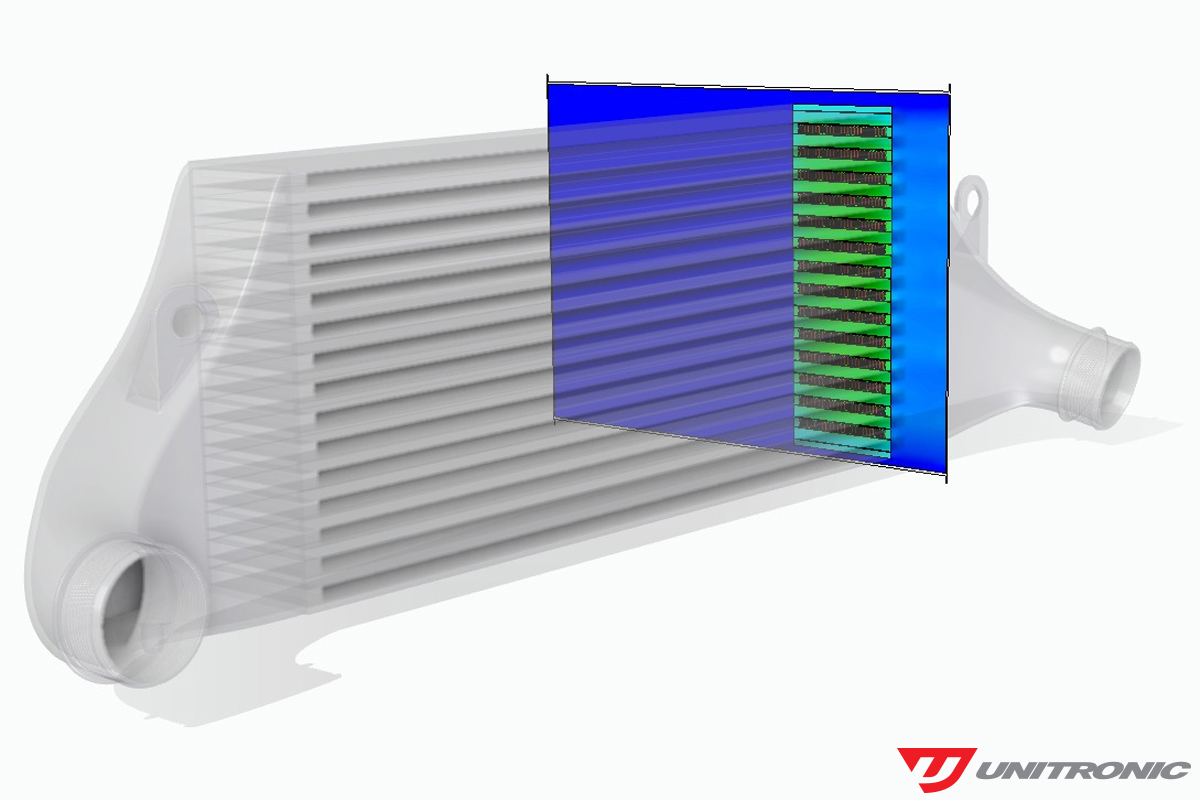

Using EFD simulations, Unitronic is also able to predict the thermal exchange of the intercooler core in the wake of air passing through the channels. This provides further insight on how our design will impact engine cooling and HVAC efficiency.

Unitronic-2.5tfsi-evo-intercooler

Unitronic-2.5tfsi-evo-intercoolerUnitronic-2.5tfsi-evo-intercooler

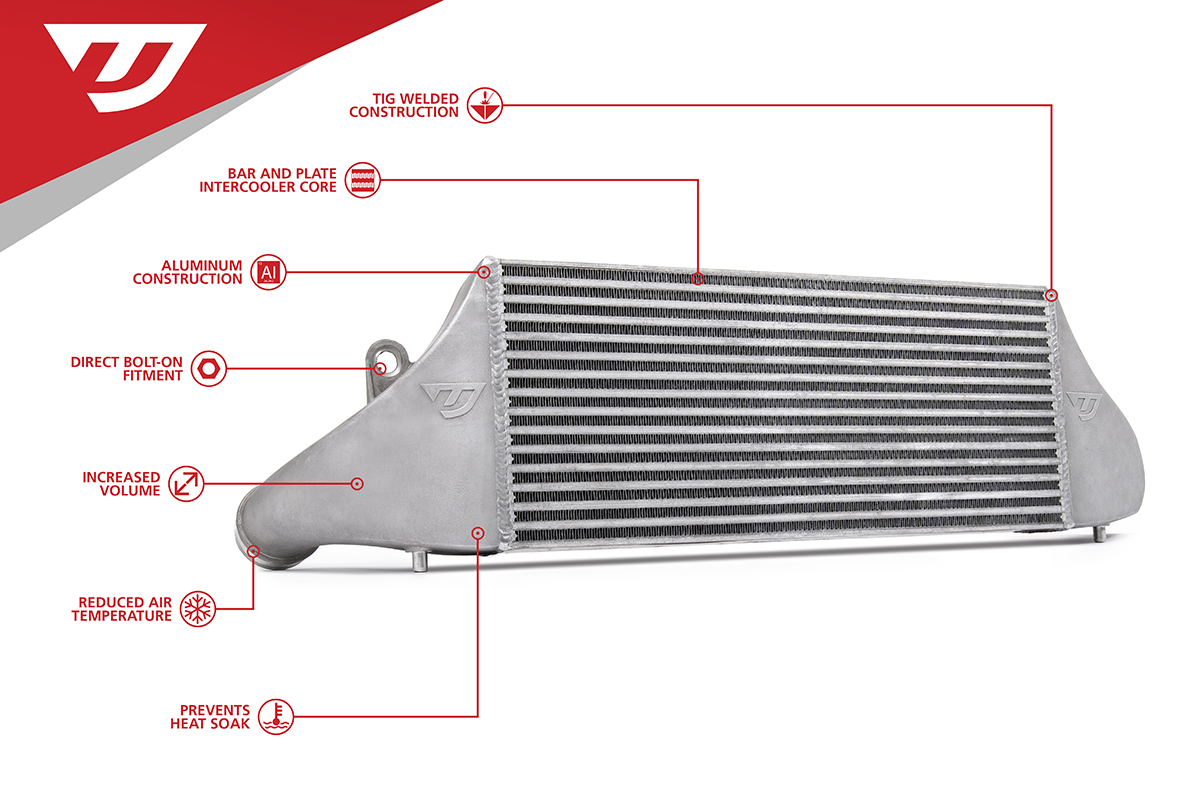

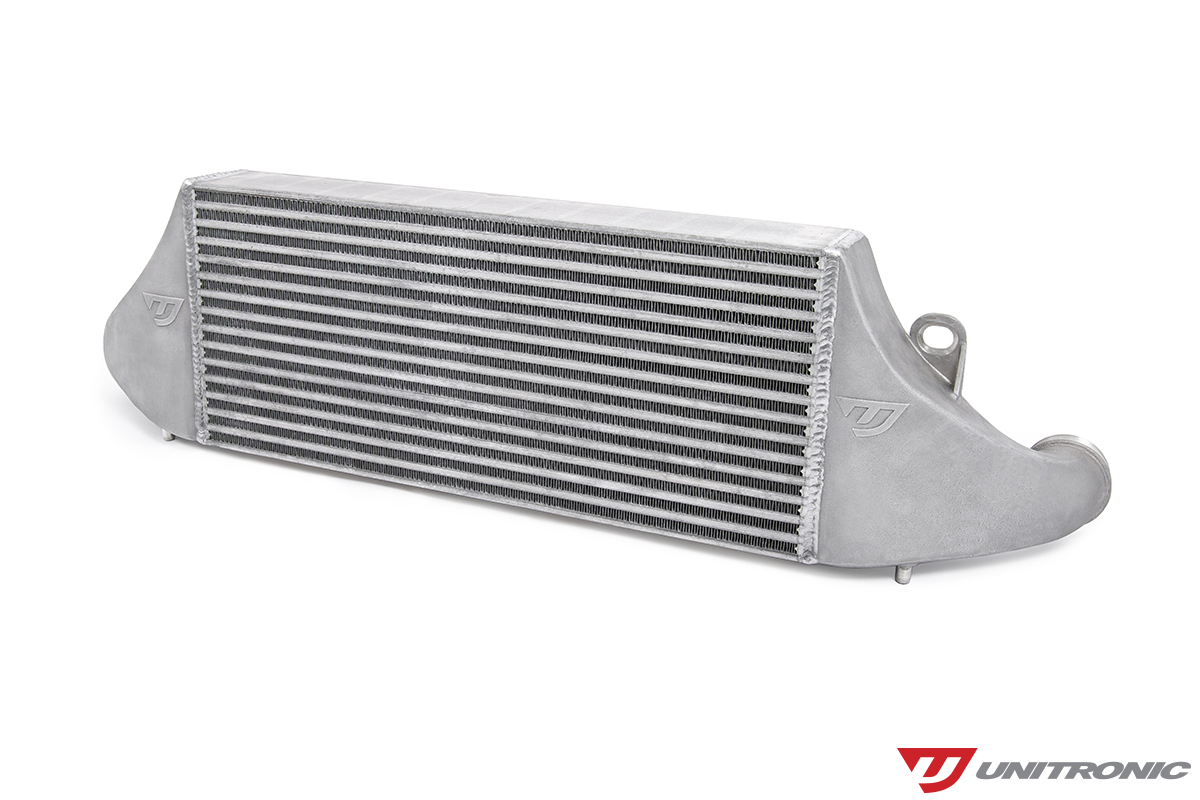

Unitronic's bar and plate intercooler core features a unique staggered and louvered fin configuration to maximize efficiency, significantly reducing charge air temperatures allowing for cooler, more dense air to be inducted by the engine; ultimately resulting in an increase in engine performance.


Unitronic-2.5tfsi-evo-intercooler

Unitronic-2.5tfsi-evo-intercoolerUnitronic-2.5tfsi-evo-intercooler

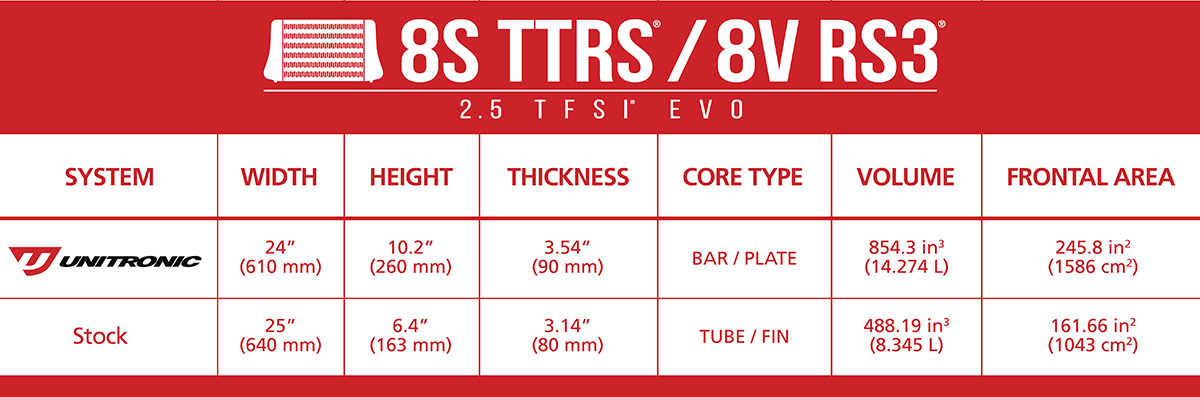

When intake air temperatures reach a specific threshold, the engine control unit begins to compensate to account for the air temperature, resulting in a decrease in performance. Unitronic's core measures 24” x 10.2” x 3.54” (610mm x 260mm x 90mm) a 71% increase in volume over stock, allowing for a greater volume of air to exchange heat, which, combined with a proper fin configuration, allows for maximum efficiency and reduction in heat-soak thresholds without producing a significant pressure drop.


Unitronic-2.5tfsi-evo-intercooler-comparison

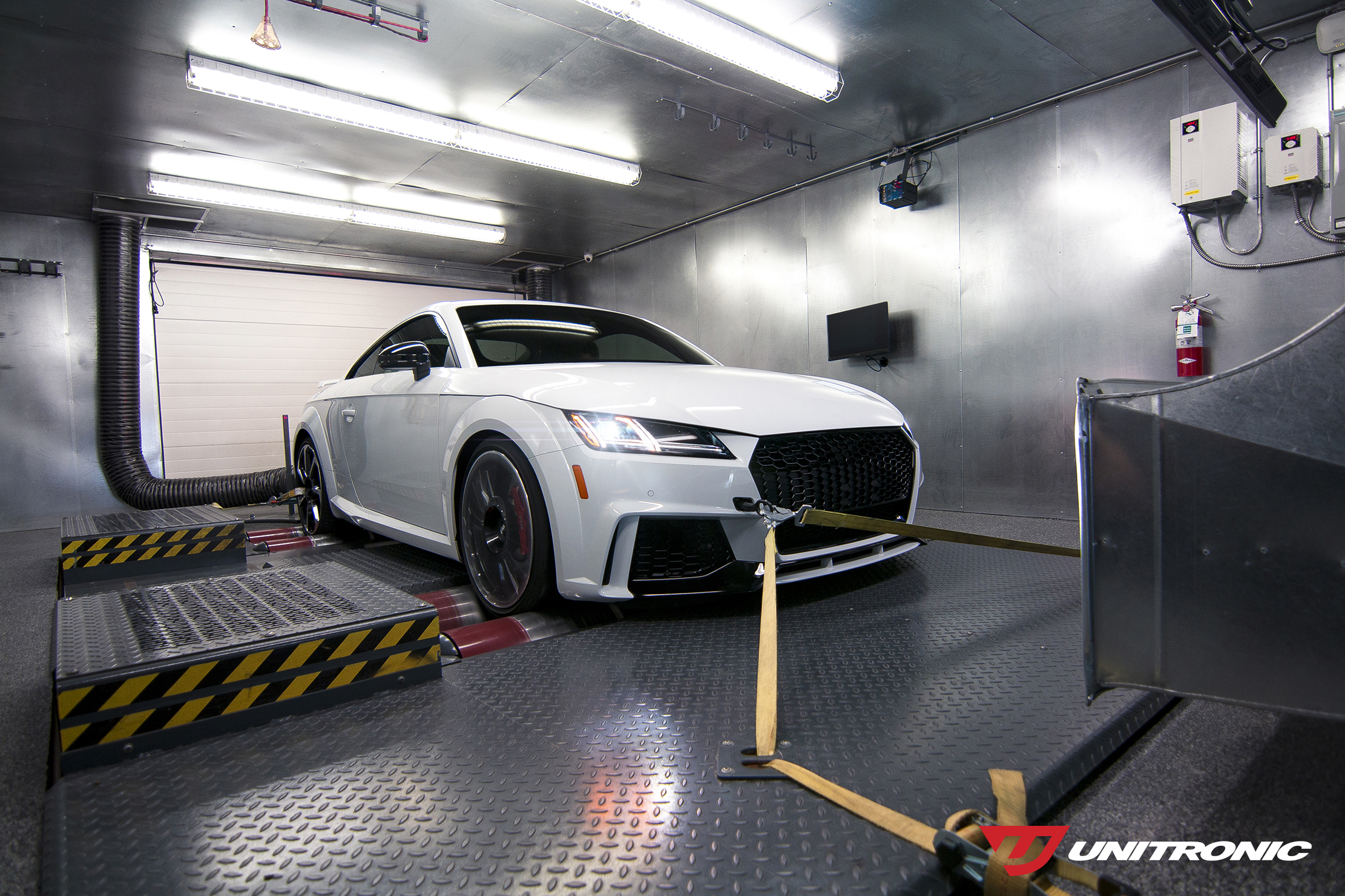

Utilizing its own 8S Audi TT RS for research and development provided Unitronic with an in-house platform to run through testing. Data was collected on its in-house MAHA Chassis Dynamometer, using our standard cooling fans with ducting properly aligned with the front end of the vehicle. The vehicle's front bumper/fascia was fully affixed for all tests. All data was collected on the same day, starting with the OEM intercooler testing first.


Unitronic-2.5tfsi-evo-intercooler-comparison


Ambient air temperature was stable at 48°F (9°C) throughout the day. Testing consisted of 6 consecutive dyno pulls with a 20 second pull and a 60 second cool down period in between runs, with both the OEM and Unitronic Intercoolers on our Stage 2 93 octane test vehicle. The purpose of this test is to collect intake air temperatures to provide data on cooling abilities, efficiency, and resistance to heat soak compared to the OEM unit.


Unitronic-2.5tfsi-evo-intercooler-comparison

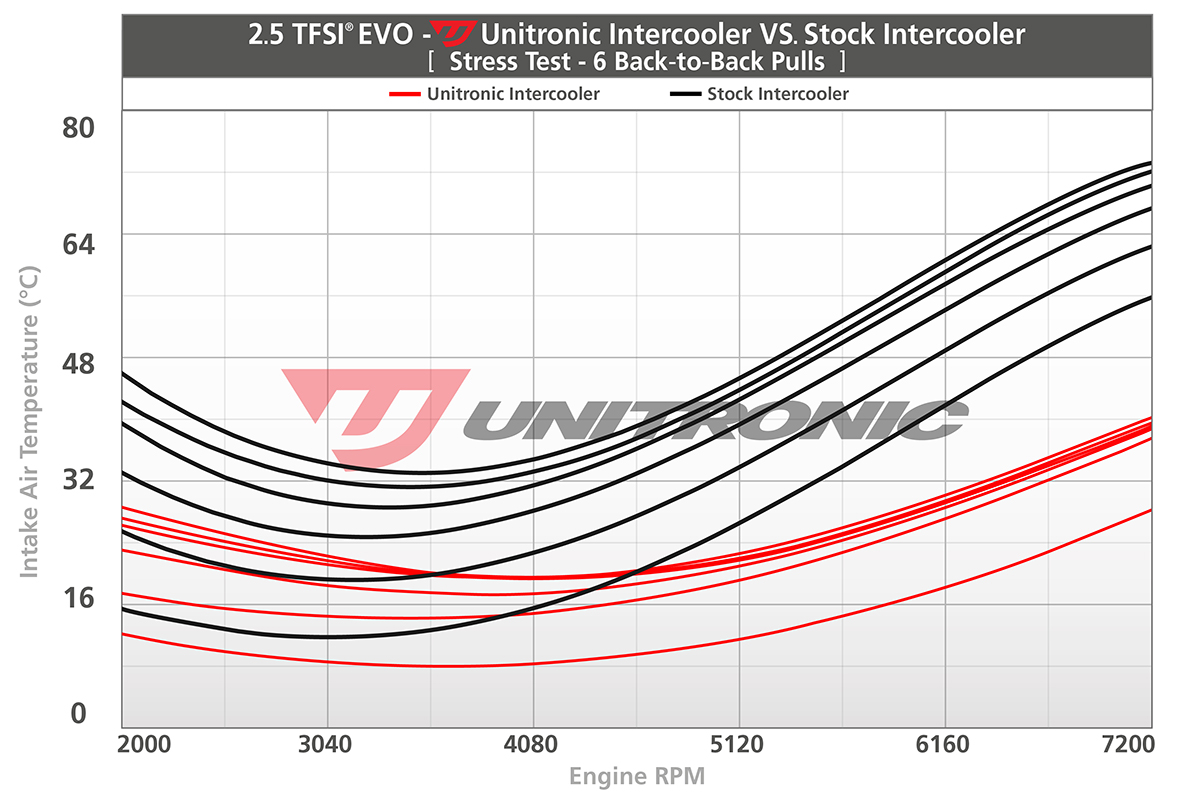

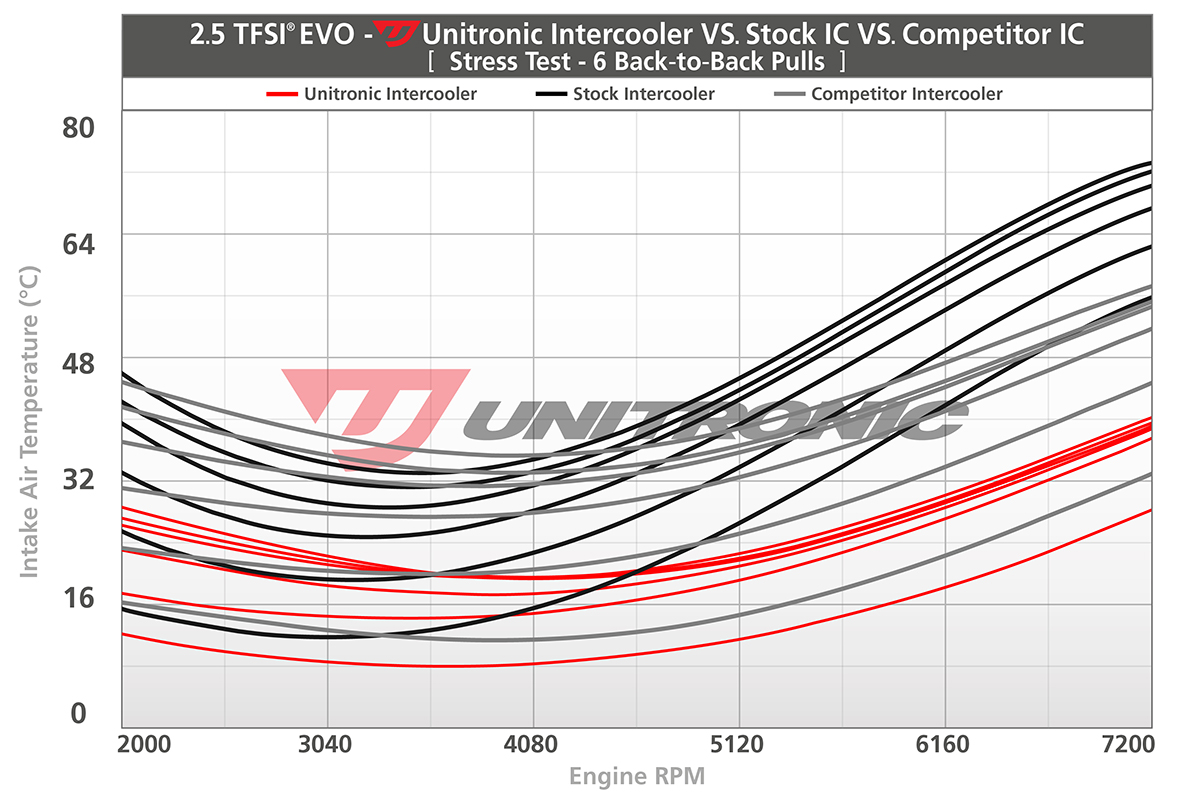

The graph above shows the Intake Air Temperature for both the OEM and Unitronic Intercoolers, individually for each of the 6 runs. The Unitronic Intercooler provided significant reductions in air temperature resulting in a cooler, denser charge air being ingested by the engine, resulting in increased performance. Its resistance to heat soak means that the core retains its cooling abilities, even through the most rigorous of conditions. The graphs below show the Unitronic Intercooler performing much better than a competitor's unit and the OEM unit as well.


Unitronic-2.5tfsi-evo-intercoolerUnitronic-2.5tfsi-evo-intercooler

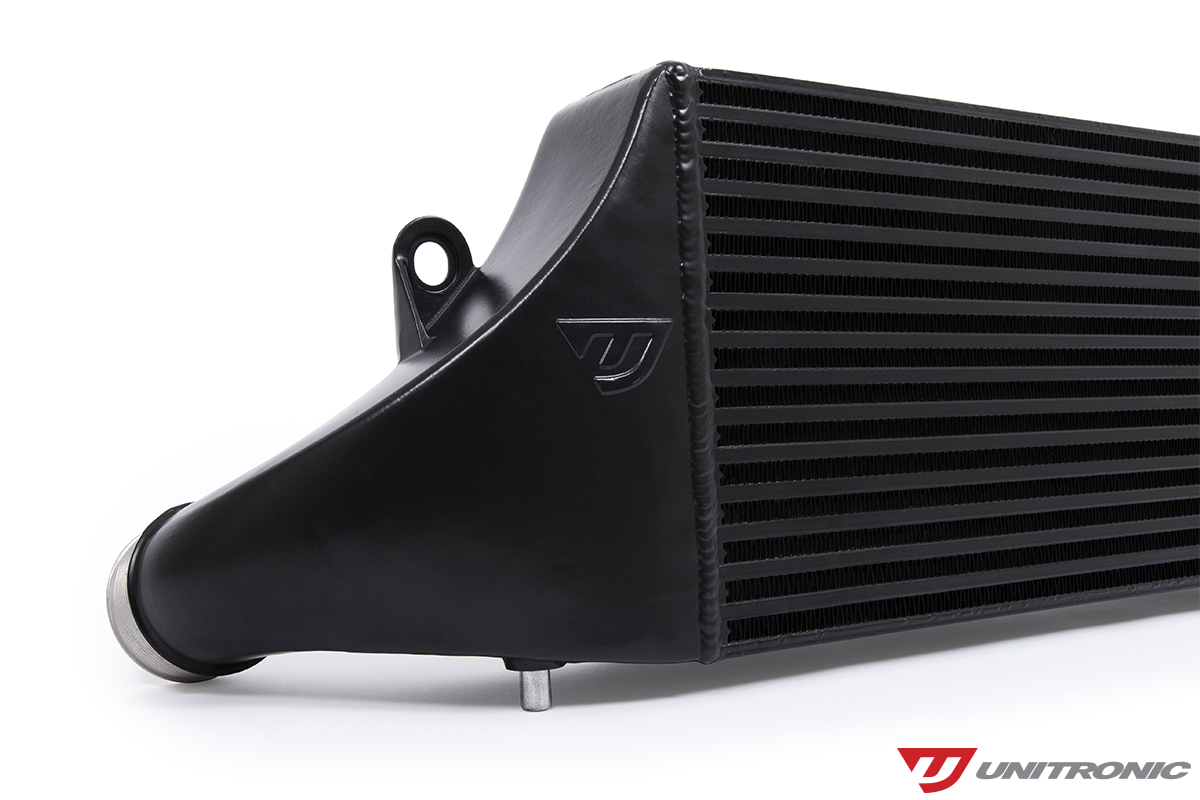

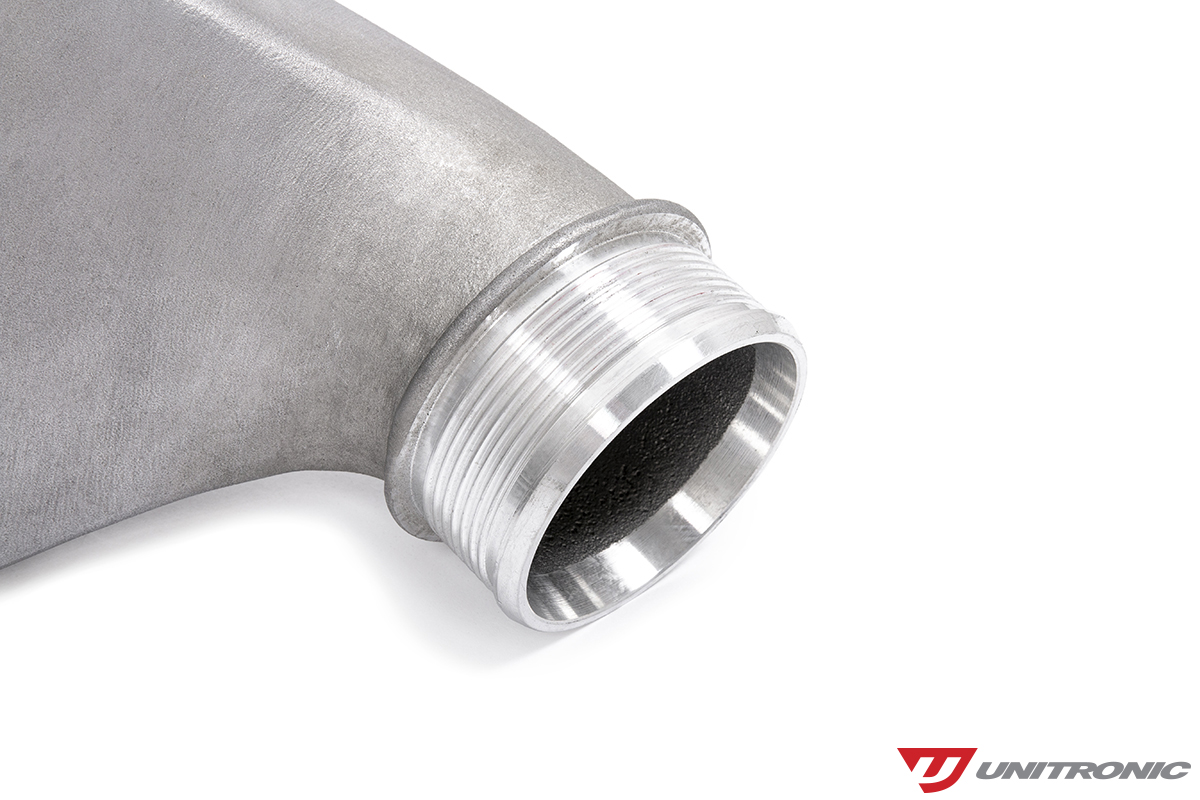

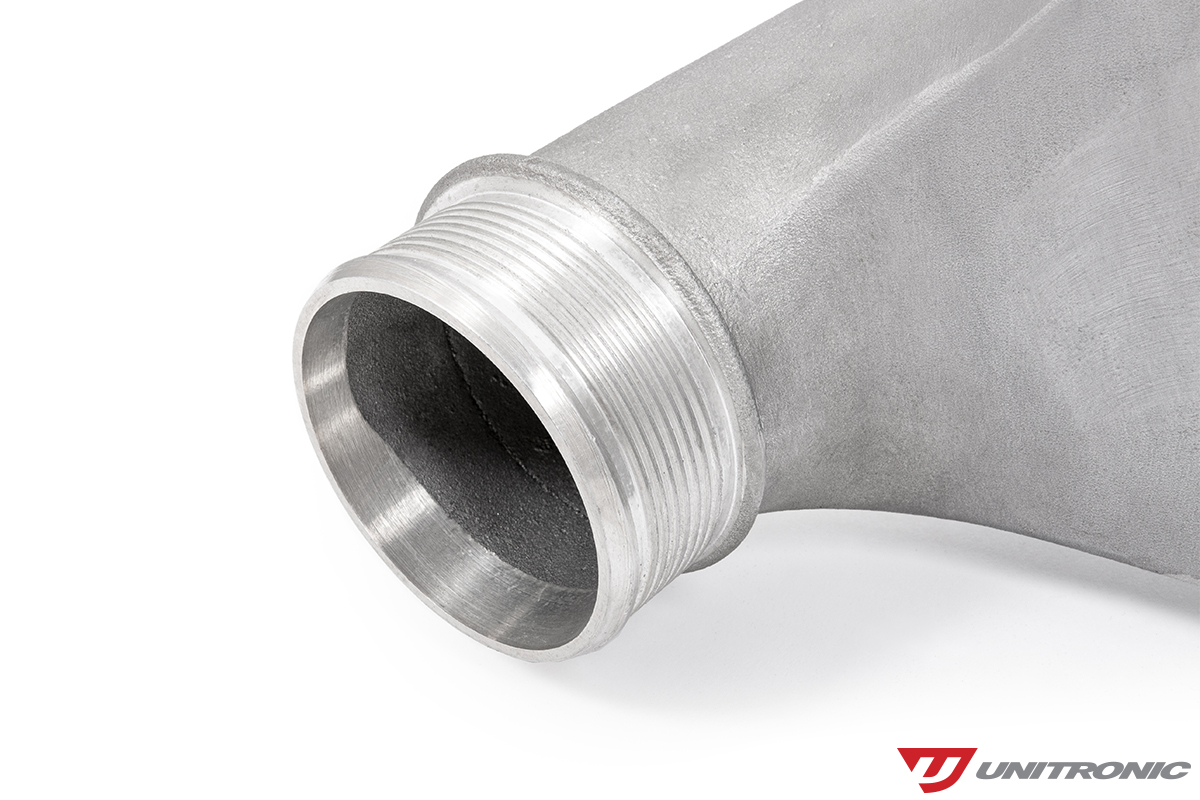

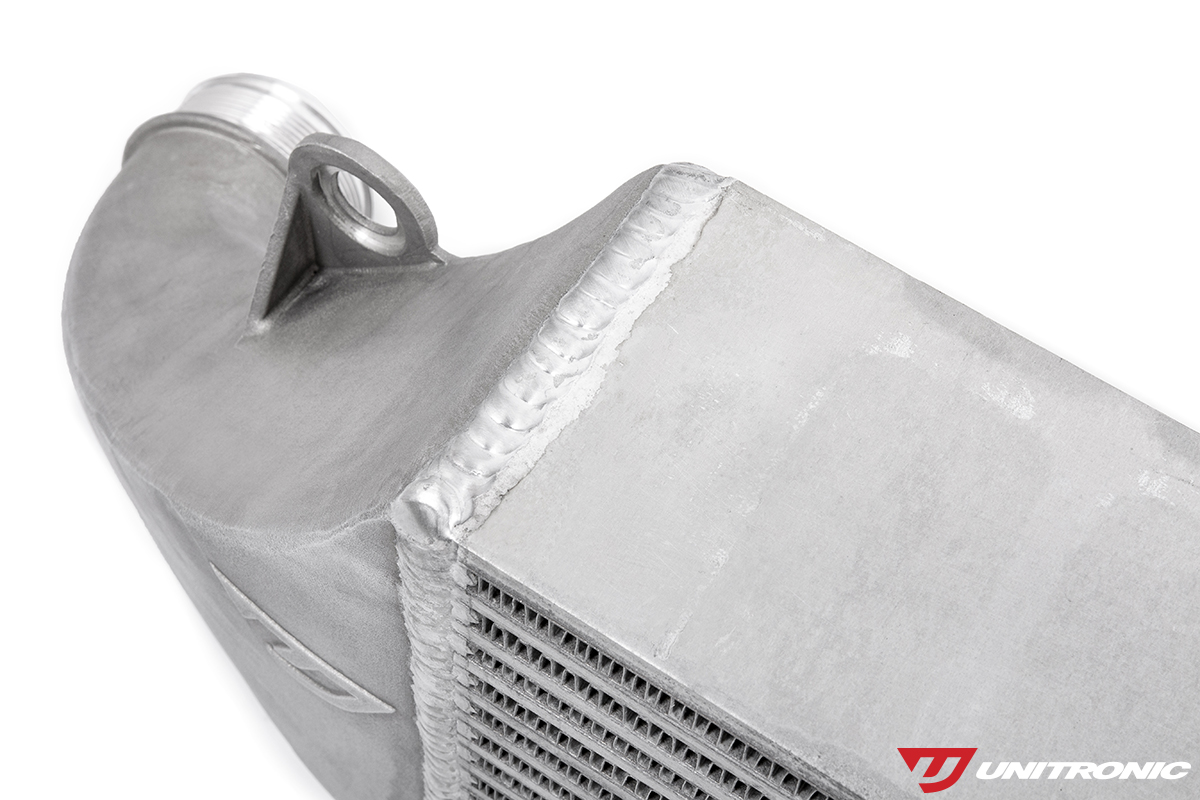

Entering and exiting the core is an important aspect that should not be forgotten about. With airflow and fitment implications, Unitronic went through many end tank prototypes and production samples prior to approving this Intercooler for production. Unitronic's cast Aluminum end tanks are designed with tolerances of +/- 0.020” to ensure perfect fitment across all of our production units. Inlet and outlet design has also been optimized to ensure smooth airflow through the intercooler and features barbed/serrated bead rolled machining to ensure the charge hoses stay securely affixed.


Unitronic-2.5tfsi-evo-intercooler

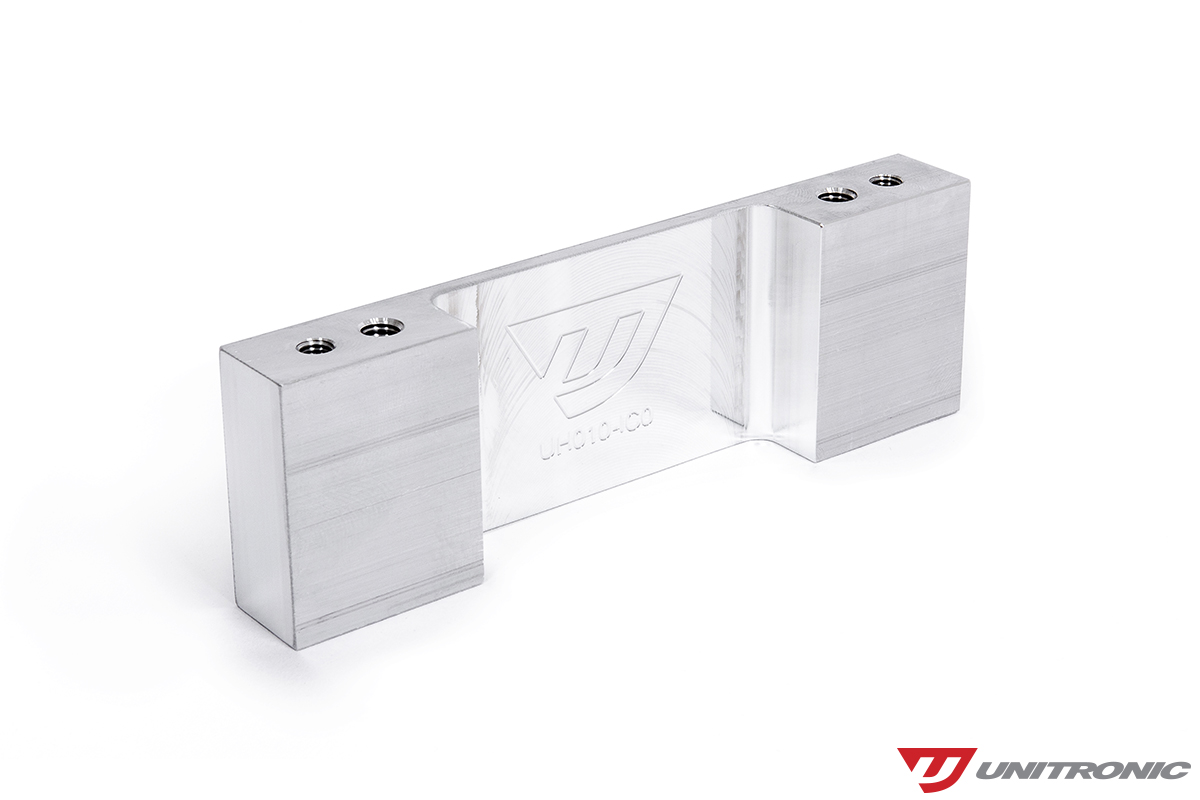

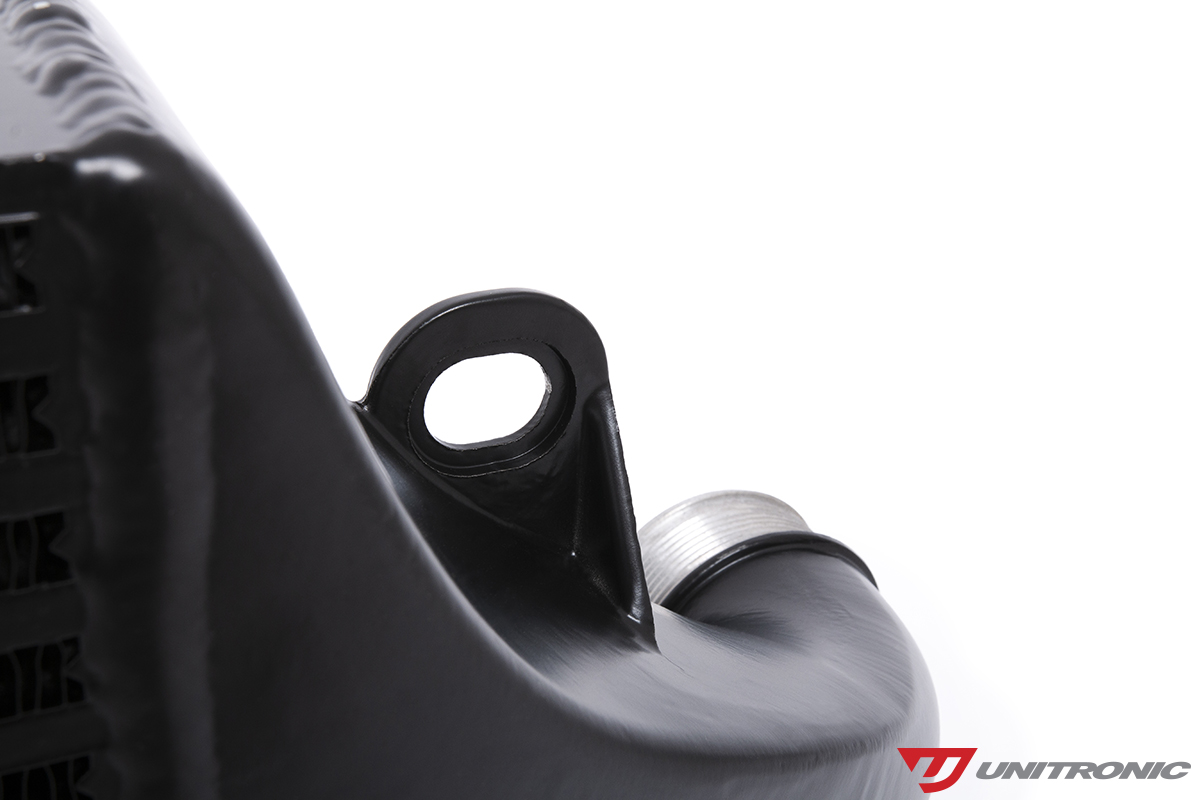

Like all Unitronic Performance Hardware, this Intercooler offers direct bolt-on fitment, retaining the factory mounting locations in order to simplify the installation process. Unitronic also designed this billet spacer in order to ensure perfect fitment for MY2018+ vehicles equipped with ACC. PN: UH010-IC0 (sold separately)


Unitronic-2.5tfsi-evo-intercooler-spacer


FEATURES

• Highly efficient bar & plate intercooler core

• Drastically reduces charge air temperature for cooler, more dense air

• Significantly more resistant to heat-soak

• 71% more volume than OEM (Unitronic Core Dimensions: 24” x 10.25” x 3.5” / 610mm x 260mm x 90mm)

• Cast Aluminum end tanks

• Direct OEM replacement; no bumper, radiator support, or other trimming required


APPLICATIONS*

2017-2020 Audi RS 3 2.5TFSI EVO (DAZA)

2018-2020 Audi TT RS 2.5TFSI EVO (DAZA)


*This part is designed for North American vehicles only, but can fit an EU vehicle, when swapped to a North American front crash bar.
