Unitronic 4 inch Forged Carbon Fiber Intake System for 2.5TFSI EVO(UH050-INA)Change Vehicle

Description

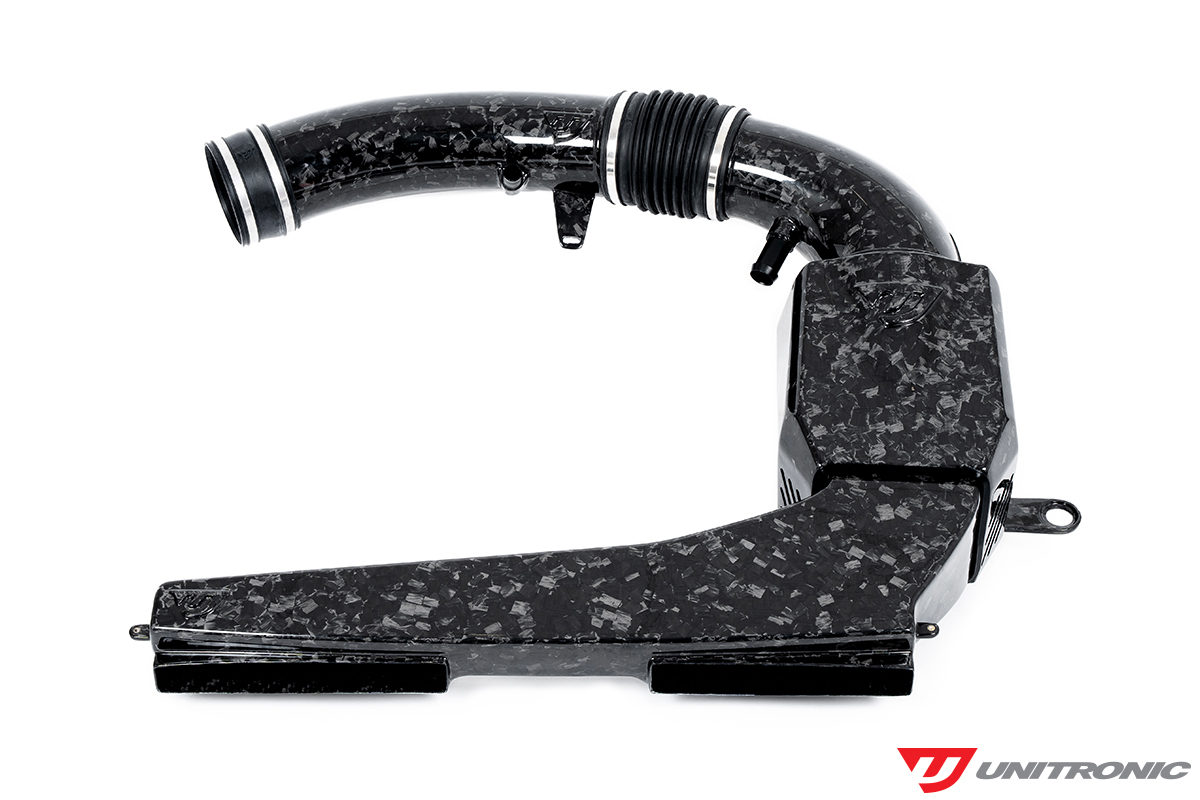

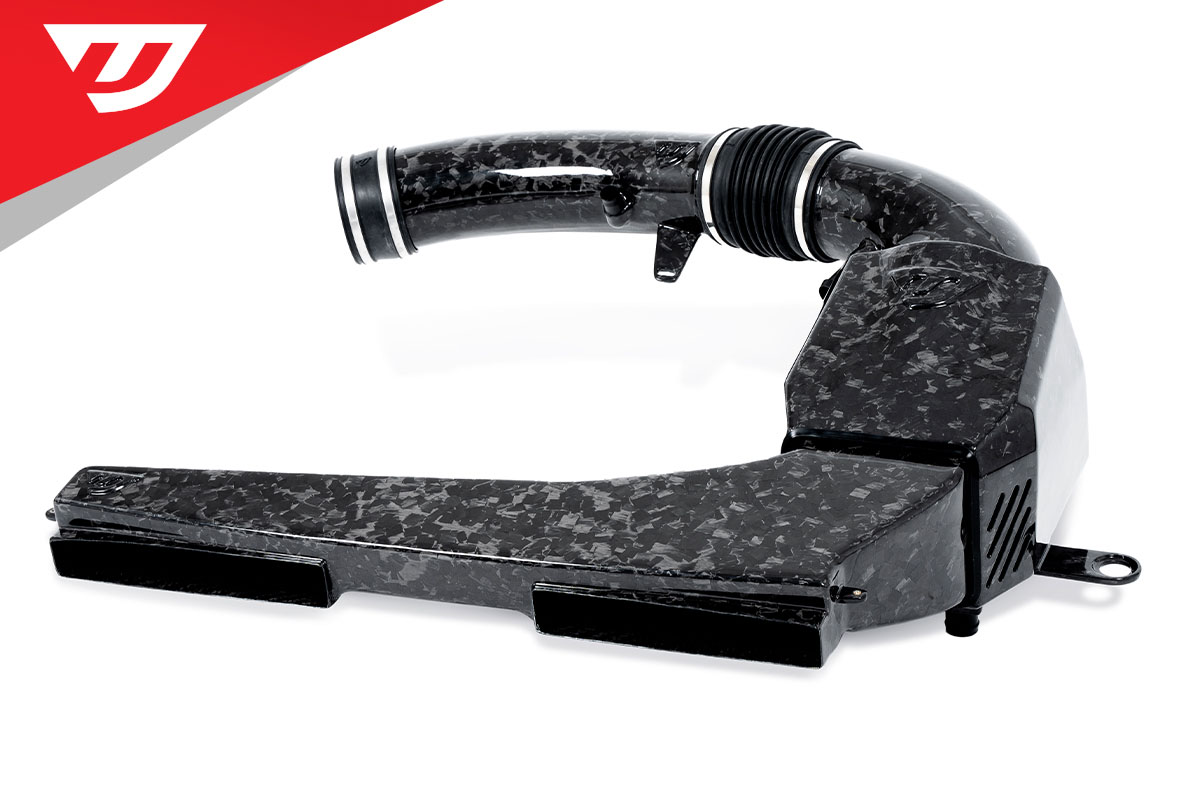

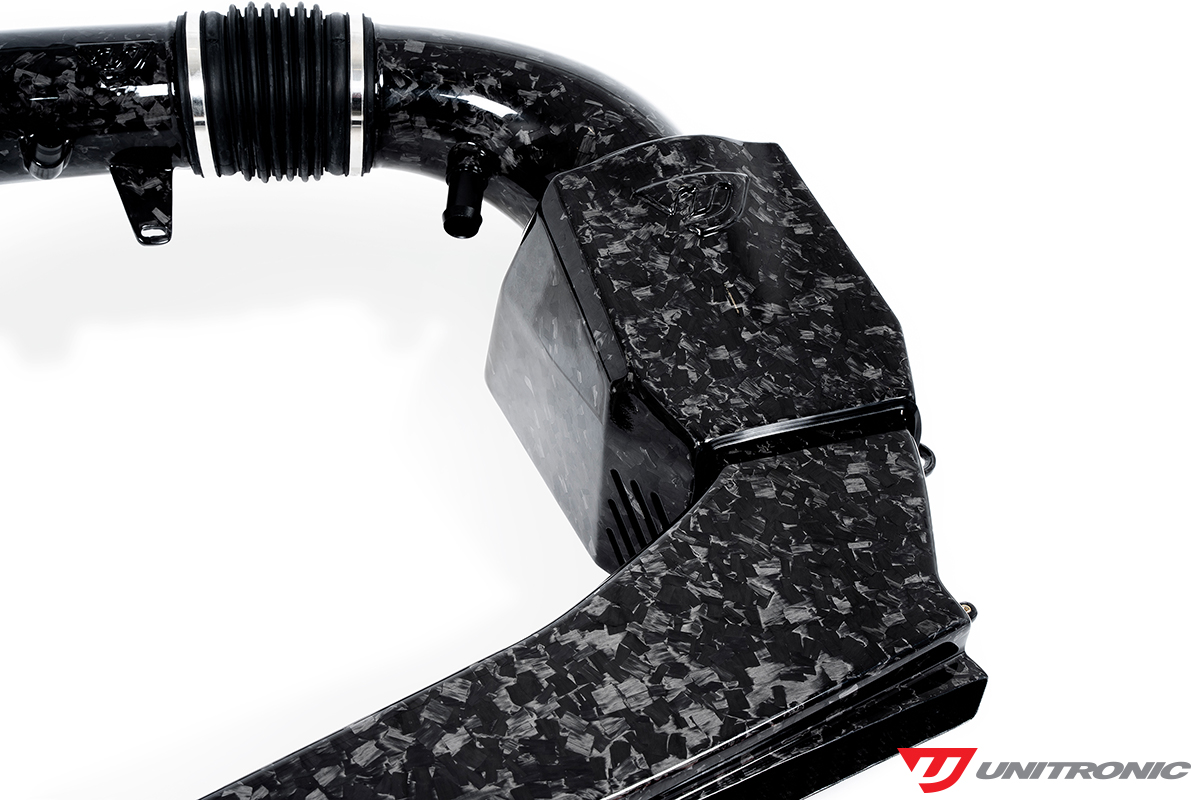

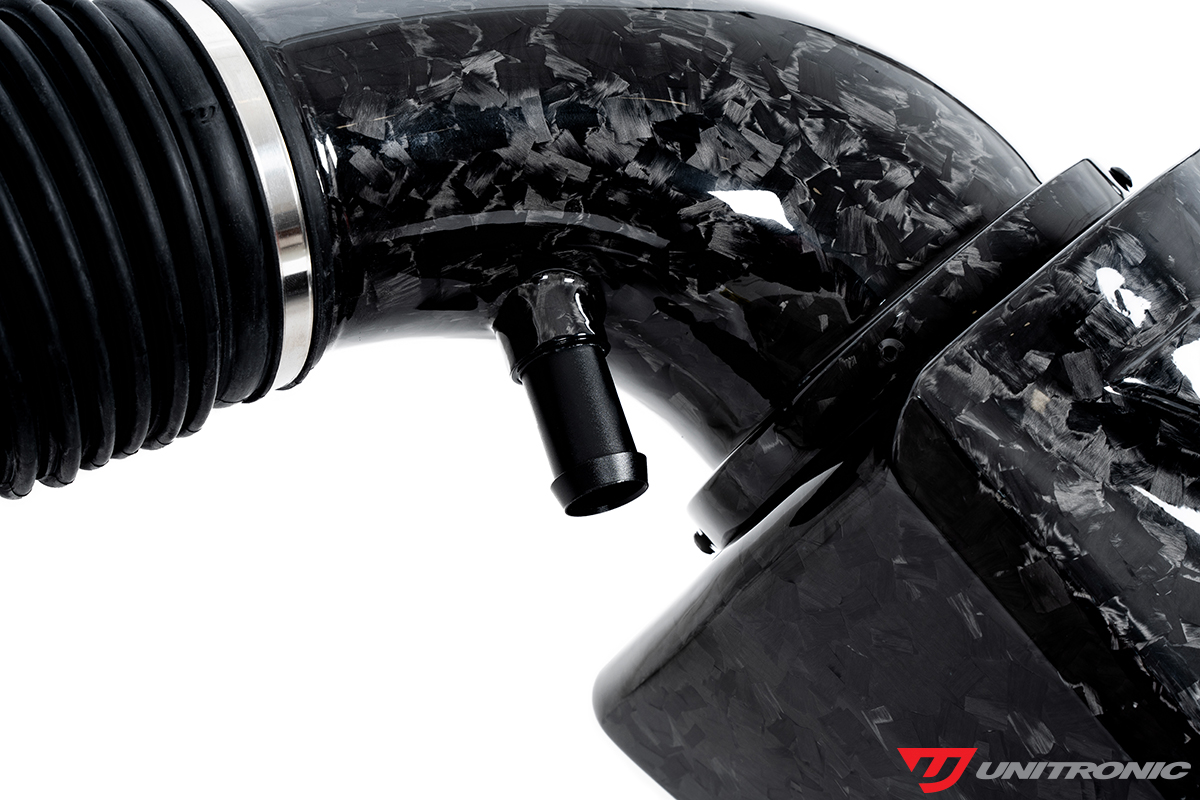

Comprised of a forged carbon fiber airbox, airduct, transition tube and intake tube with unique couplers, this stunning new intake system features a distinctive marbled finish which combines to unleash the full potential of your 2.5TFSI® EVO 8V.2 RS 3® or 8S TT RS®.

Built with reinforced materials, high quality EPDM couplers and stainless steel hardware, this Forged Carbon Fiber Intake System is more than capable of standing up to the rigors of track use or daily driving while offering improved performance, airflow, throttle response and intoxicating turbo induction sounds.

Read the full release article here.

Features / Benefits

Up to 88% increase in flow over stock
Prepreg forged carbon fiber material
Autoclave construction with proprietary molds
Built-in UV and heat resistant finish for improved durability
Direct bolt-on fitment with OEM mounting locations & EPDM mounting grommets
High-quality stainless steel hose clamps
EPDM couplers
Smooth airflow transitions
Proven power, torque and airflow gains

Hardware Included

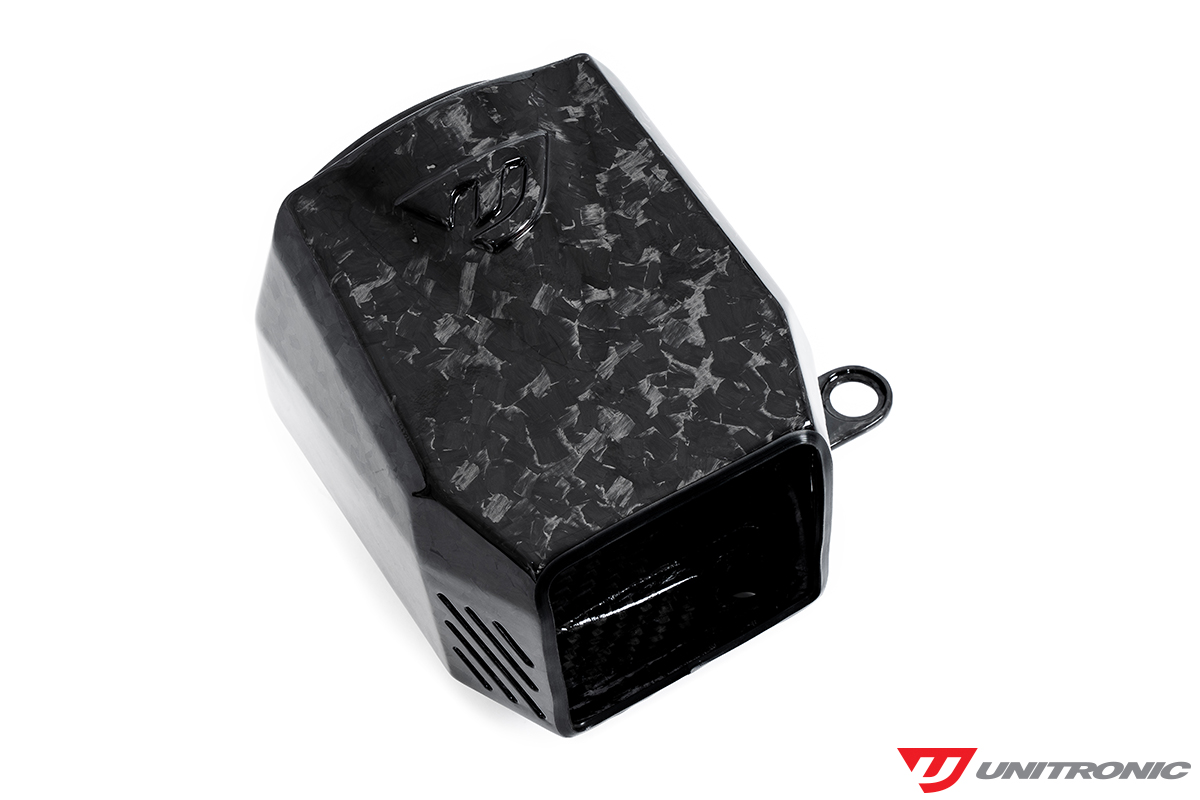

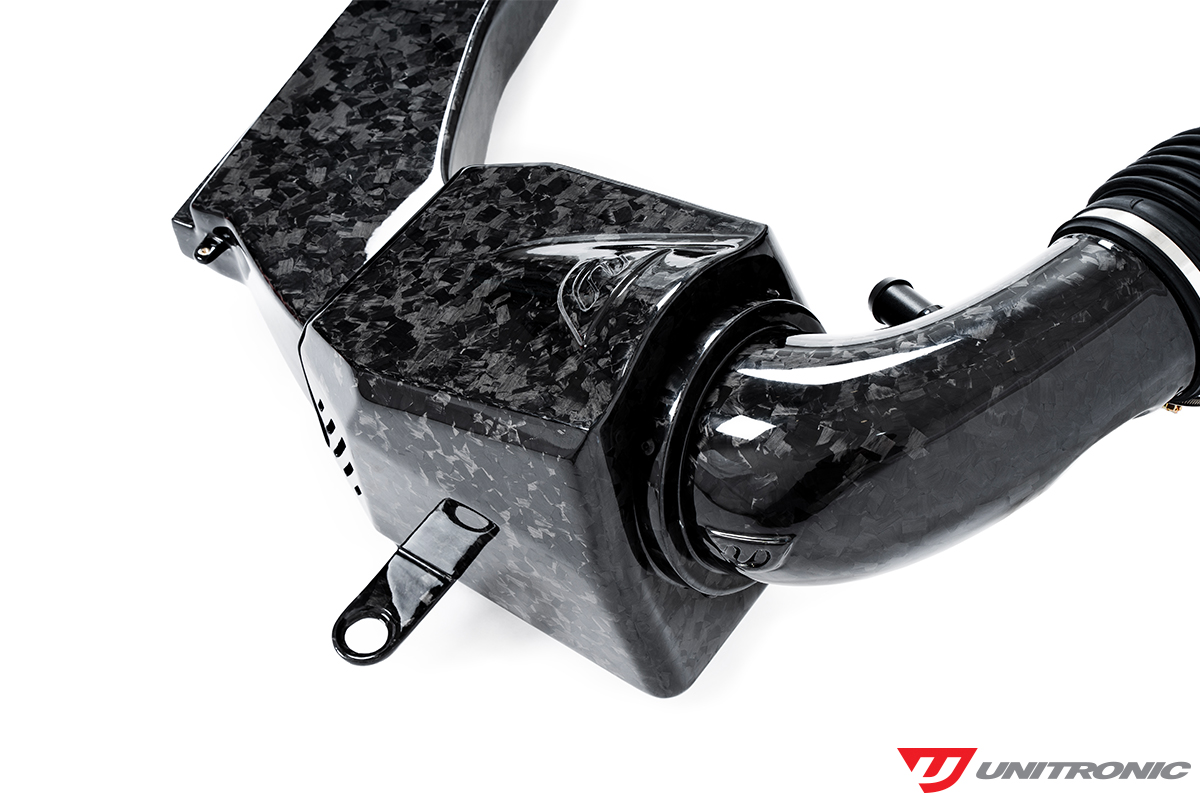

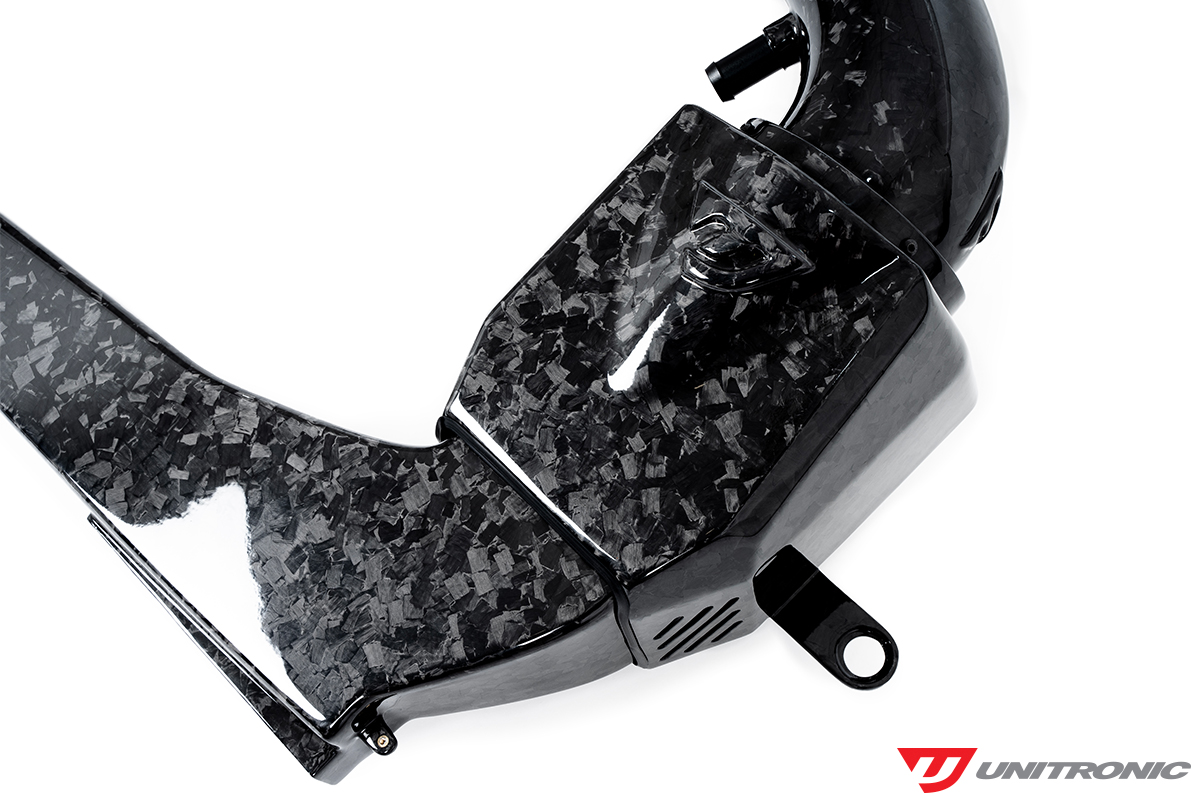

Forged Carbon Fiber Airbox

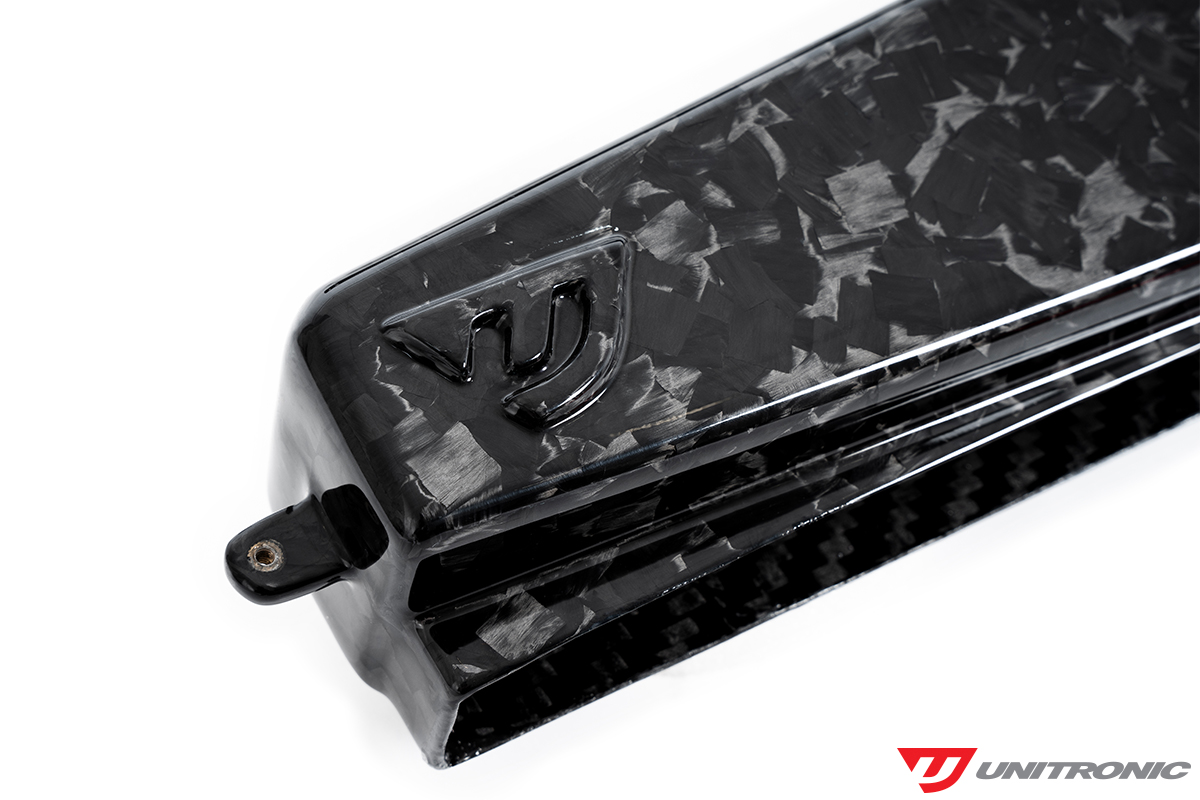

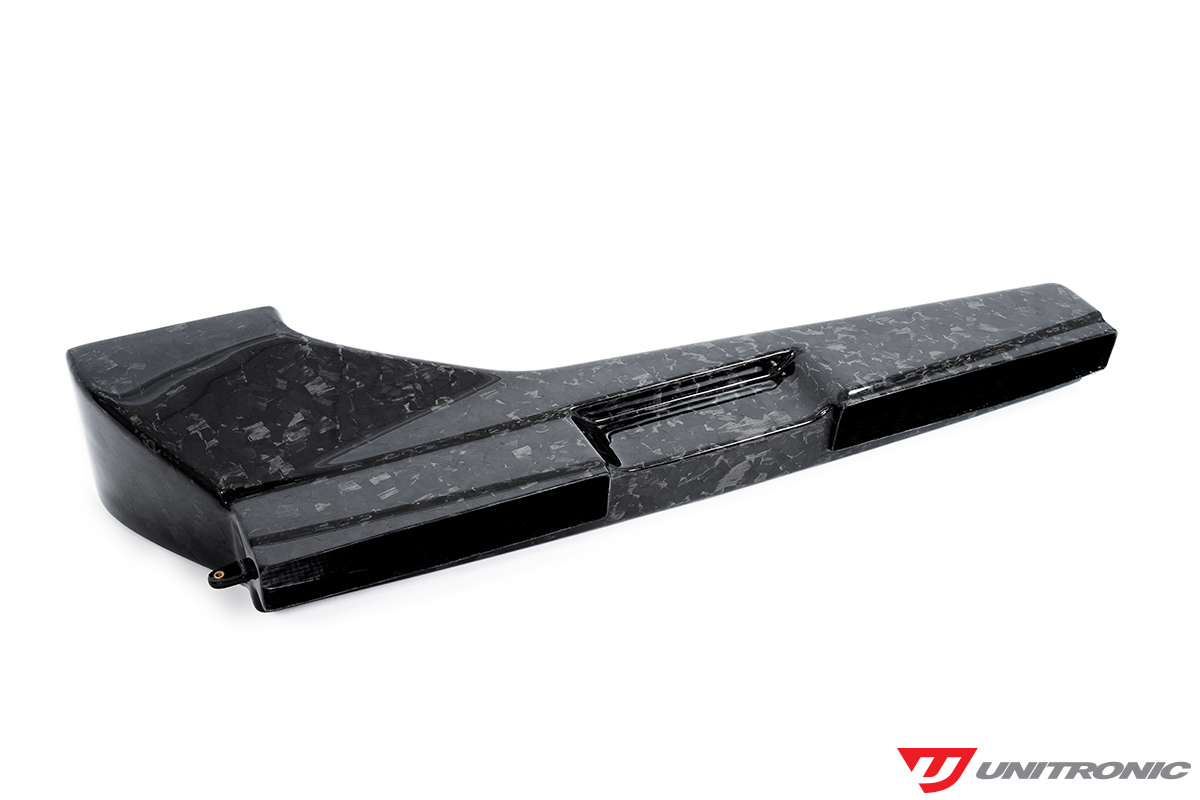

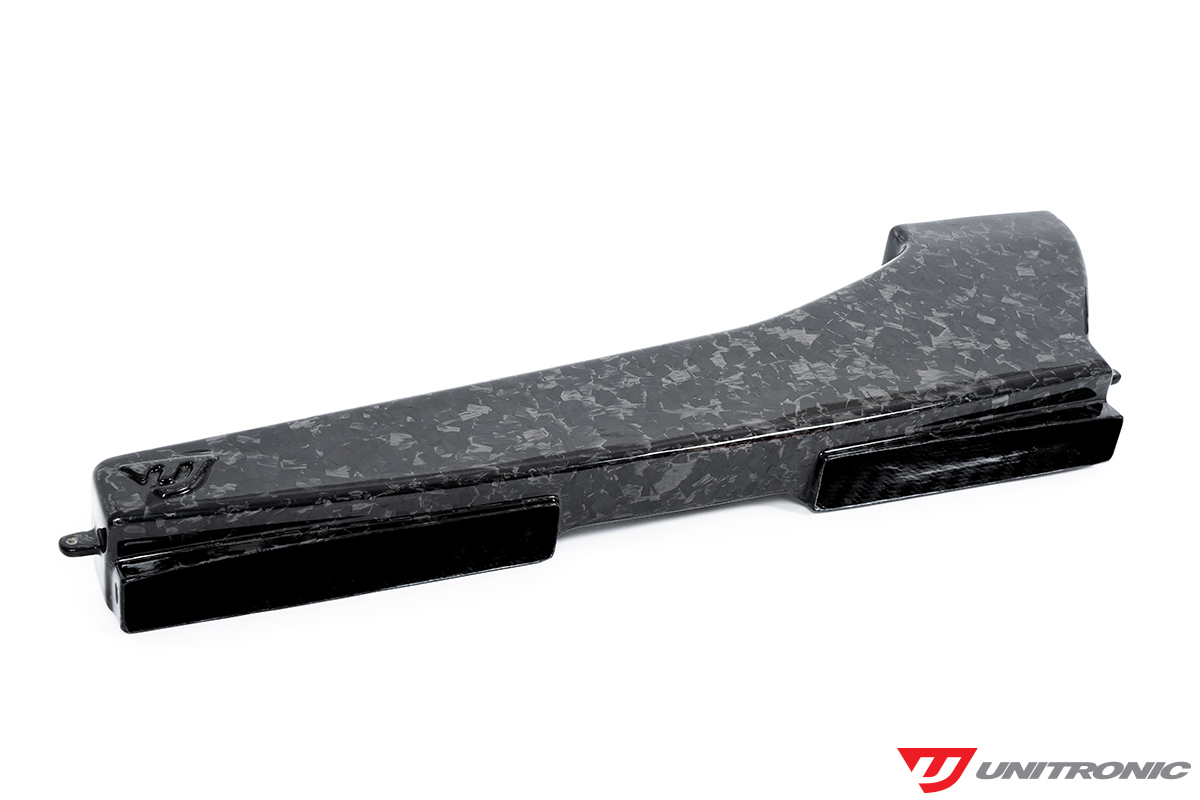

Forged Carbon Fiber Airduct
4" Forged Carbon Fiber Intake Tube
Forged Carbon Fiber Transition Tube
4" EPDM Inlet Coupler
4" EPDM Flex Coupler
6" Tapered Cone Air Filter
EPDM Mounting Grommets
All Necessary Hardware

Recommended Software

Stage 1
Stage 1+
Stage 2
Stage 3

Related Hardware

$1,849.99USD

Options
Click on a product for more information.

Unitronic 6 inch Tapered Cone Race Air Filter for 2.5TFSI EVO

$43.99USD

Unitronic Intake Adapter for MY19+ 2.5 TFSI EVO

$76.99USD

Buy Now

Airflow Optimization

To validate its form through function; Unitronic engineers strategically used CFD to maximize the efficiency of this intake system. Every aspect of the design was studied closely, iteration after iteration, until reaching the maximums governed by the laws of physics. This CFD simulation illustrates how well airflow travels through the system. The primary focus was to achieve laminar flow and minimal pressure drop in all areas of the design. The result of this is an increase in volumetric efficiency.

Improved Flexibility

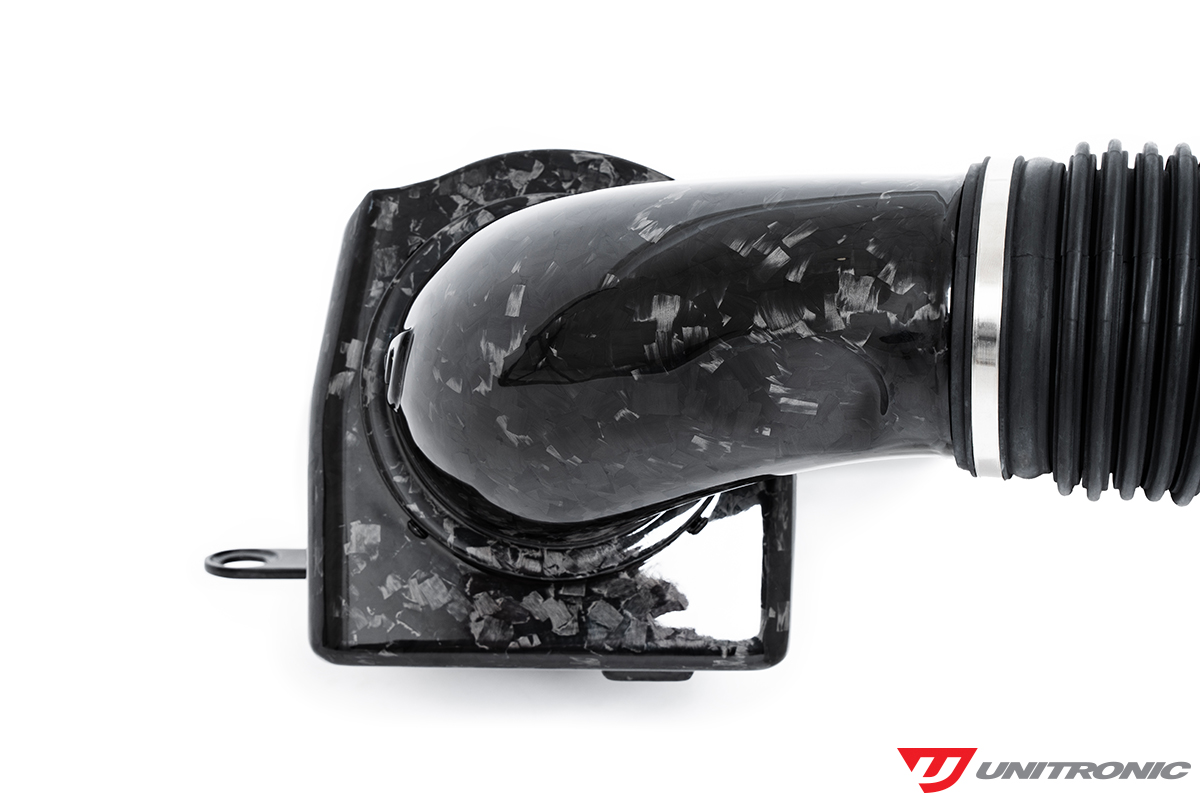

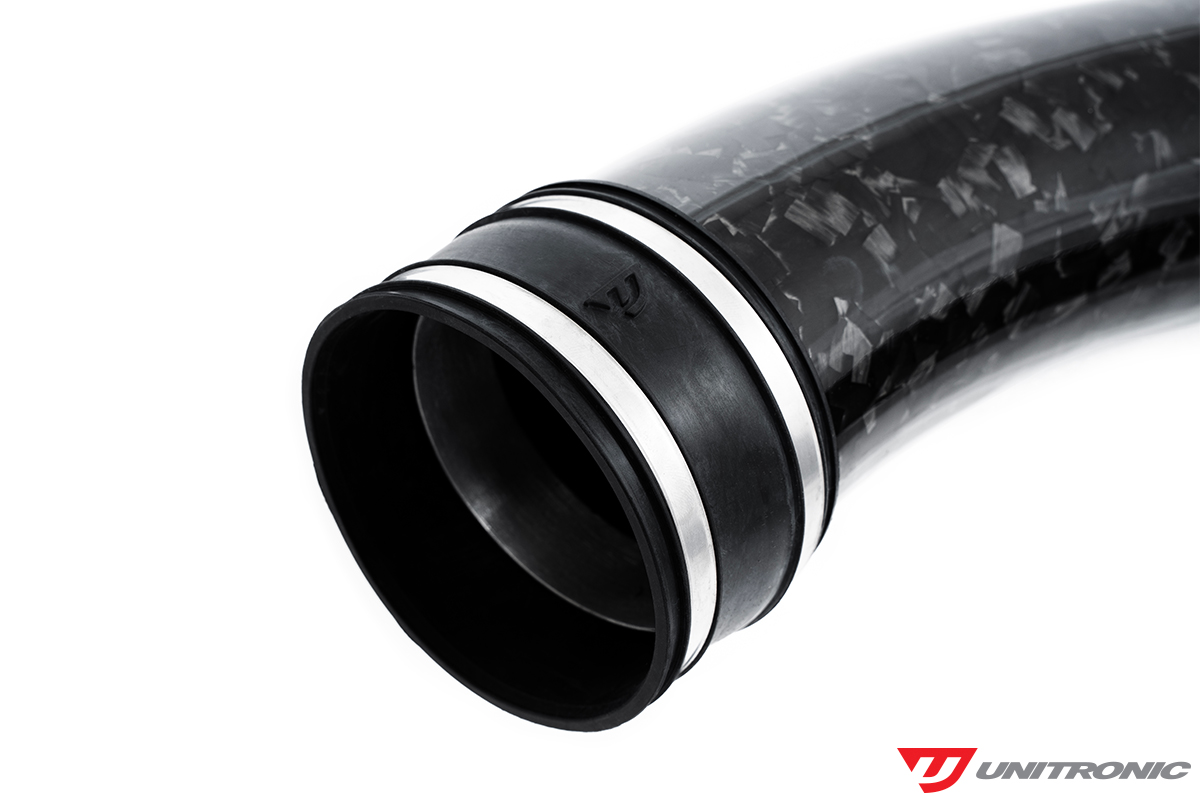

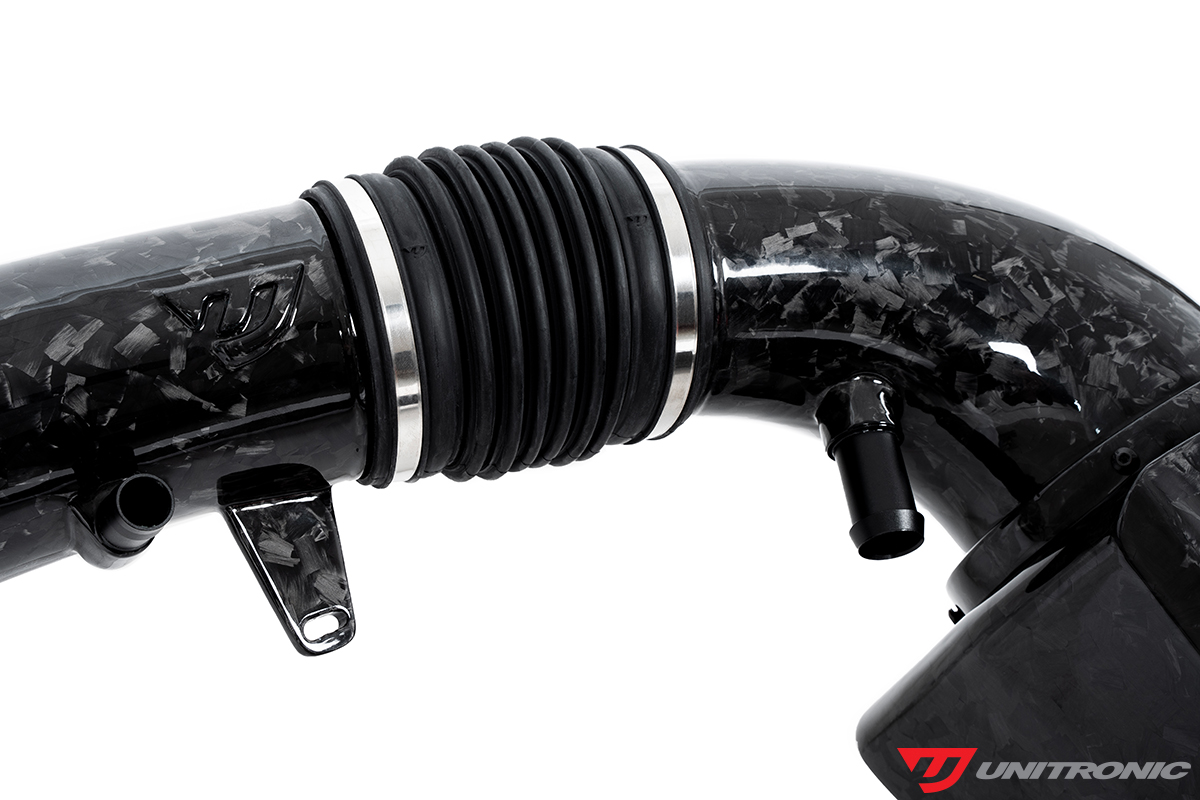

Unitronic high-quality EPDM silicone couplers offer a superior amount of flexibility over traditional silicone, while still offering the rigidity and strength needed to support high-powered 2.5TFSI engines. Unitronic’s engineers also created a design that allows for smooth, laminar airflow on the inside walls, while maintaining flexibility through the means of a non-collapsing structural rib profile. Unitronic's couplers are designed to perfectly align with the bead rolls on the carbon fiber tubes, to ensure a perfect and seamless connection; hose clamp guides ensure perfect alignment.

Airflow Validations

Using its in-house Superflow SF-1020 Flow Bench, Unitronic Engineers previously validated designs to ensure that this Intake System effectively optimizes airflow in a variety of conditions. The OEM intake yielded a peak flow rate of 595 CFM at 28” of H2O (Aq), while the Unitronic 4” Intake System achieved 1118 CFM with the Race Filter for a gain of 88% over the OEM Intake and flowed 1095 CFM with the Sport Filter, a gain of 84% over the OEM Intake.

Premium Fit and Finish

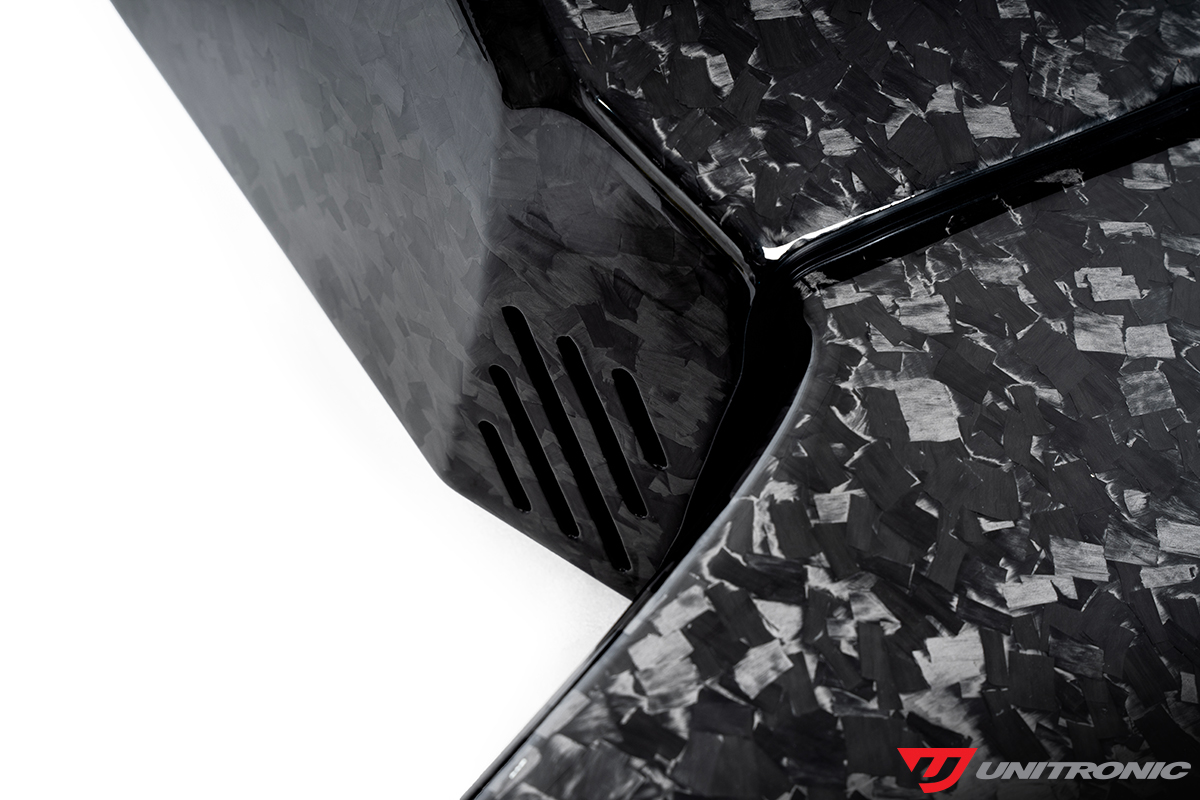

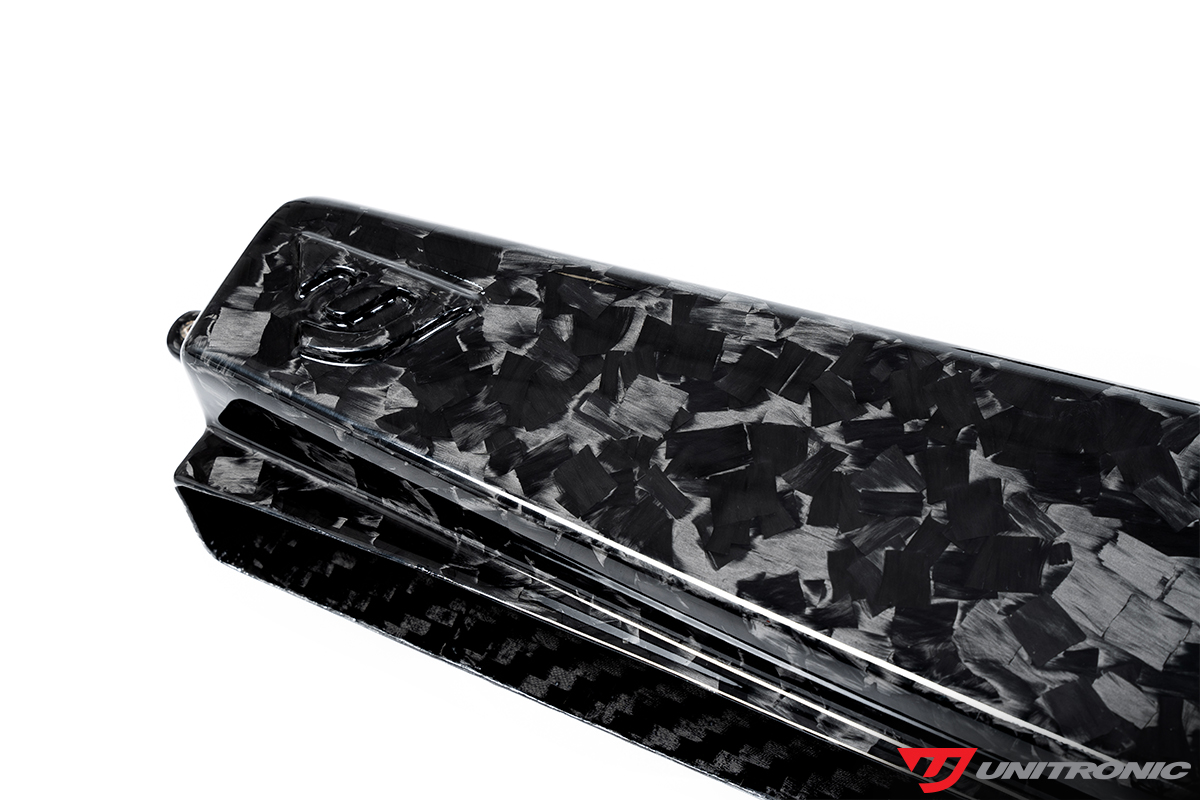

Crafted from the finest prepreg forged carbon fiber material, each component boasts unparalleled strength and a distinctive marbled finish. Utilizing advanced autoclave construction with proprietary molds featuring built-in UV and heat resistant protection, this Forged Carbon Fiber Intake System is engineered to perfection while ensuring uncompromised quality and attention to detail are maintained.

Install

The Unitronic 4" Forged Carbon Fiber Intake System for vehicles equipped with the 2.5 TFSI EVO engine is designed to be simple to install with all the necessary hardware included. Installation time will take approximately one hour including the removal of the factory intake and installation of your new Unitronic Intake system.

NOTE: Please make sure to purchase the MY19+ Intake Adapter for model year 2019+ equipped with the 2.5TFSI DAZA engine.

NOTE: A Unitronic 4" Turbo Inlet Elbow is required in order to fit this Intake System onto the 2.5TFSI EVO DAZA engine.

Difficulty Level:
2 / 5

Installation Guide
